UTMTEK Innovation Technology Co., Ltd.
What We Do ?
We are a technology-driven company dedicated to advancing low-altitude digital infrastructure. Based in Shenzhen.
We build comprehensive UAV management cloud platforms, urban low-altitude service systems, and AI-driven edge-computing flight controllers—enabling smart, safe, and efficient low-altitude operations for cities and industries.
UTMTEK Innovation Technology Co., Ltd.

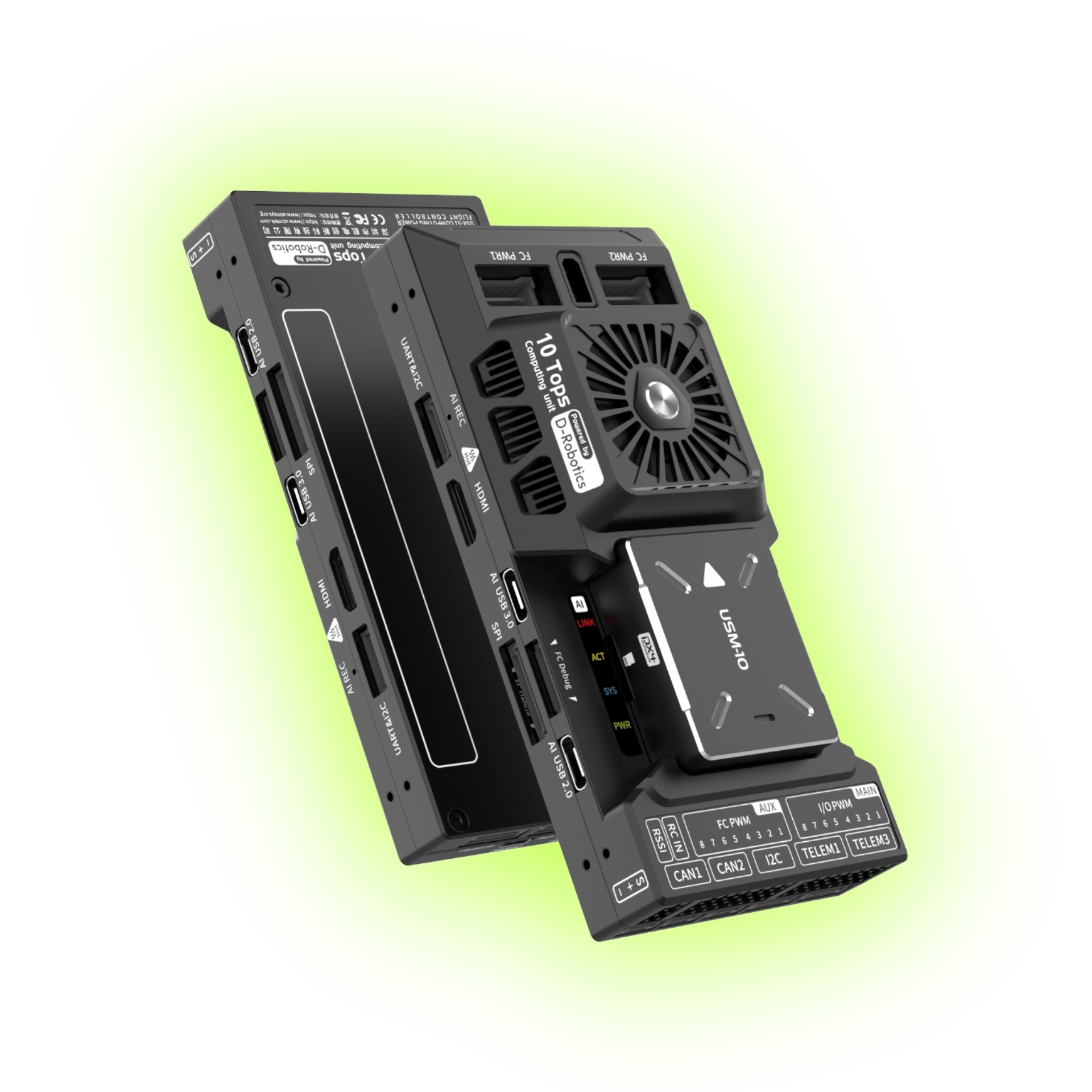

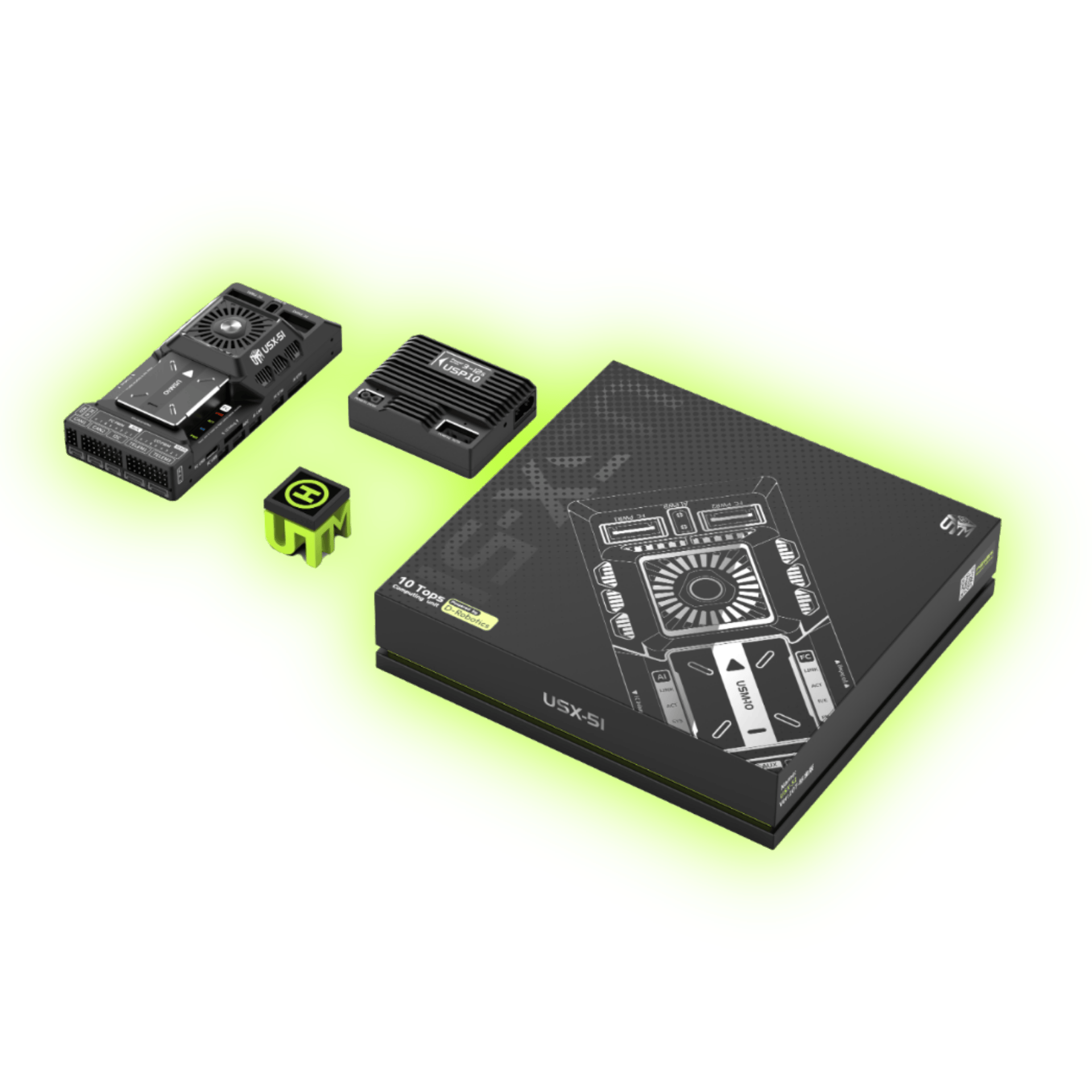

What can the USX51 do?
- All-in-one intelligent flight controller combining Pixhawk 6X + 10 TOPS onboard AI computing
- Run AI models onboard — object detection, tracking, segmentation, perception
- Supports SLAM, VIO/LIO, mapping, path planning & autonomous navigation
- High-reliability flight control with triple-redundant IMUs, dual barometers, and rich I/O
- Works with PX4/ArduPilot for multirotor, fixed-wing, and VTOL
- Ideal for inspection, mapping, delivery, security, agriculture and autonomous UAV missions
UTMTEK Innovation Technology Co., Ltd.

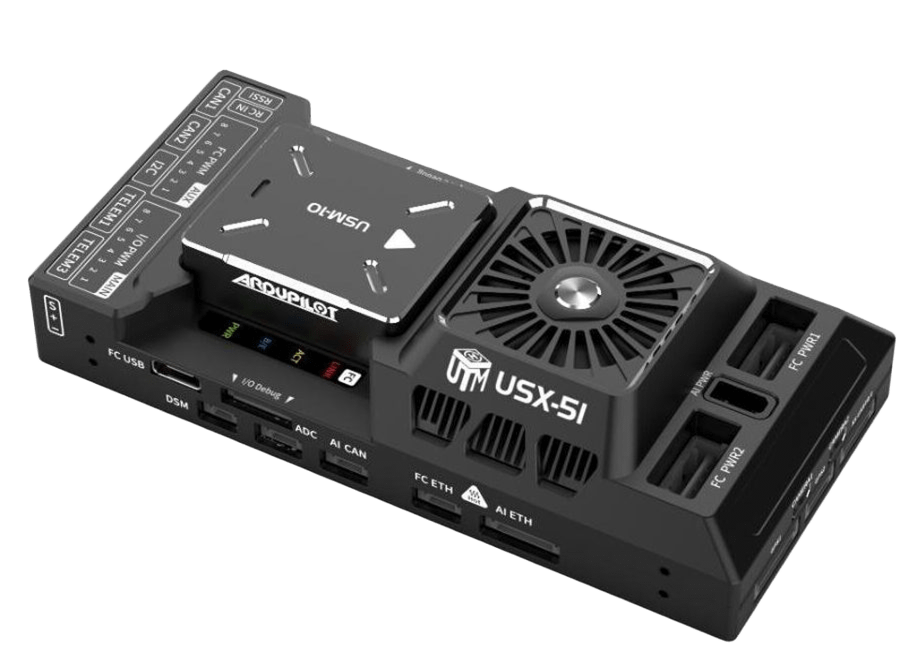

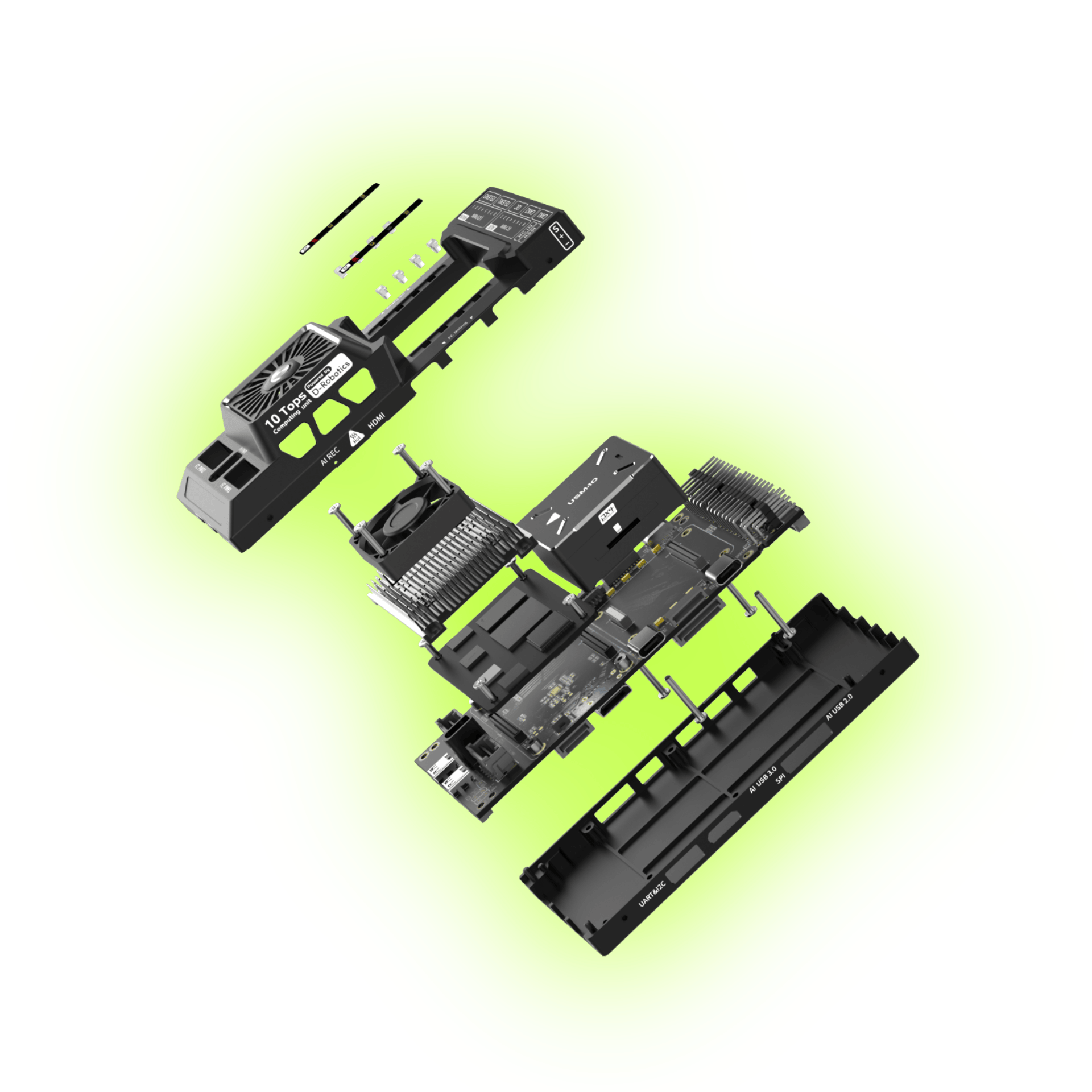

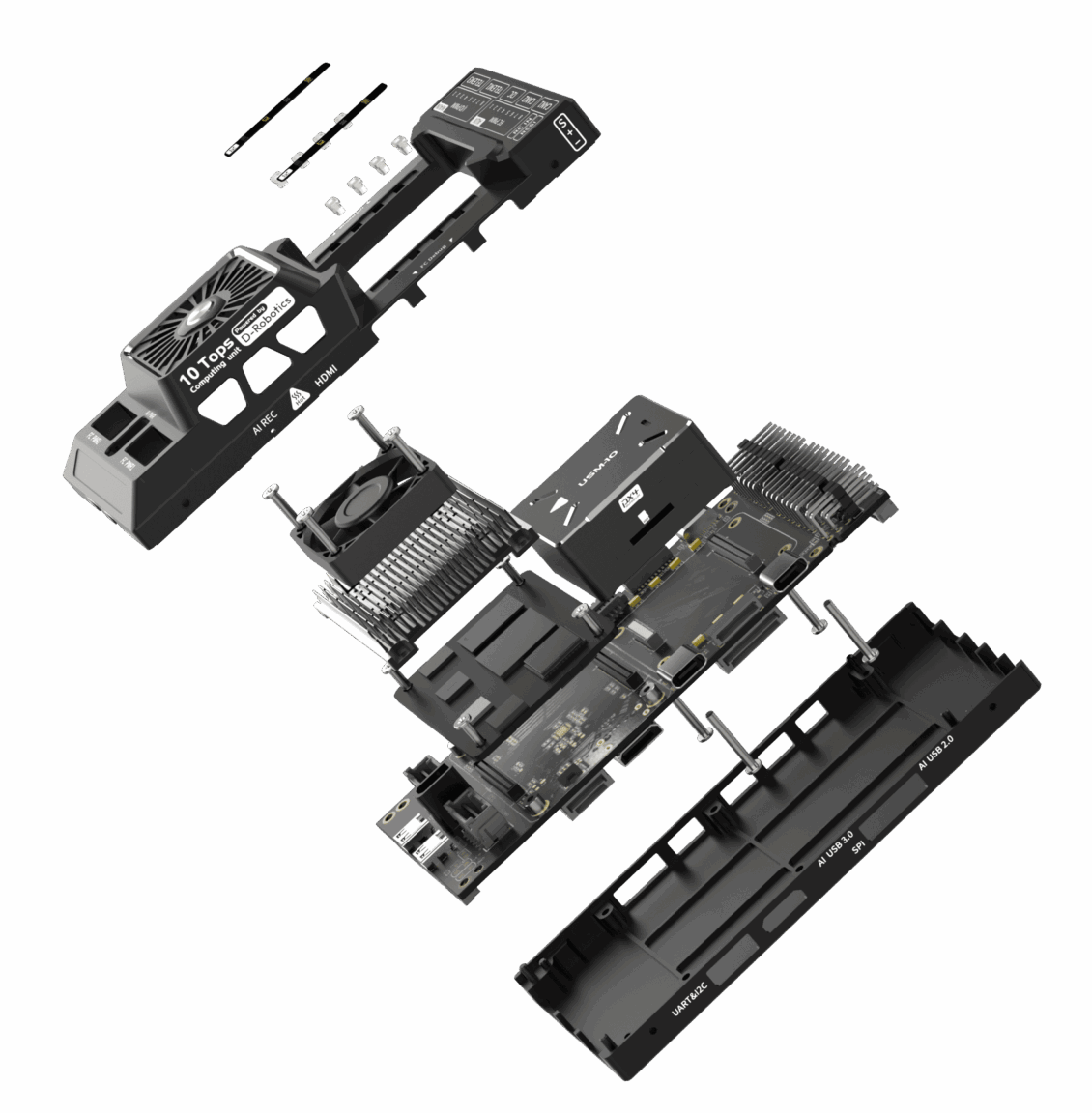

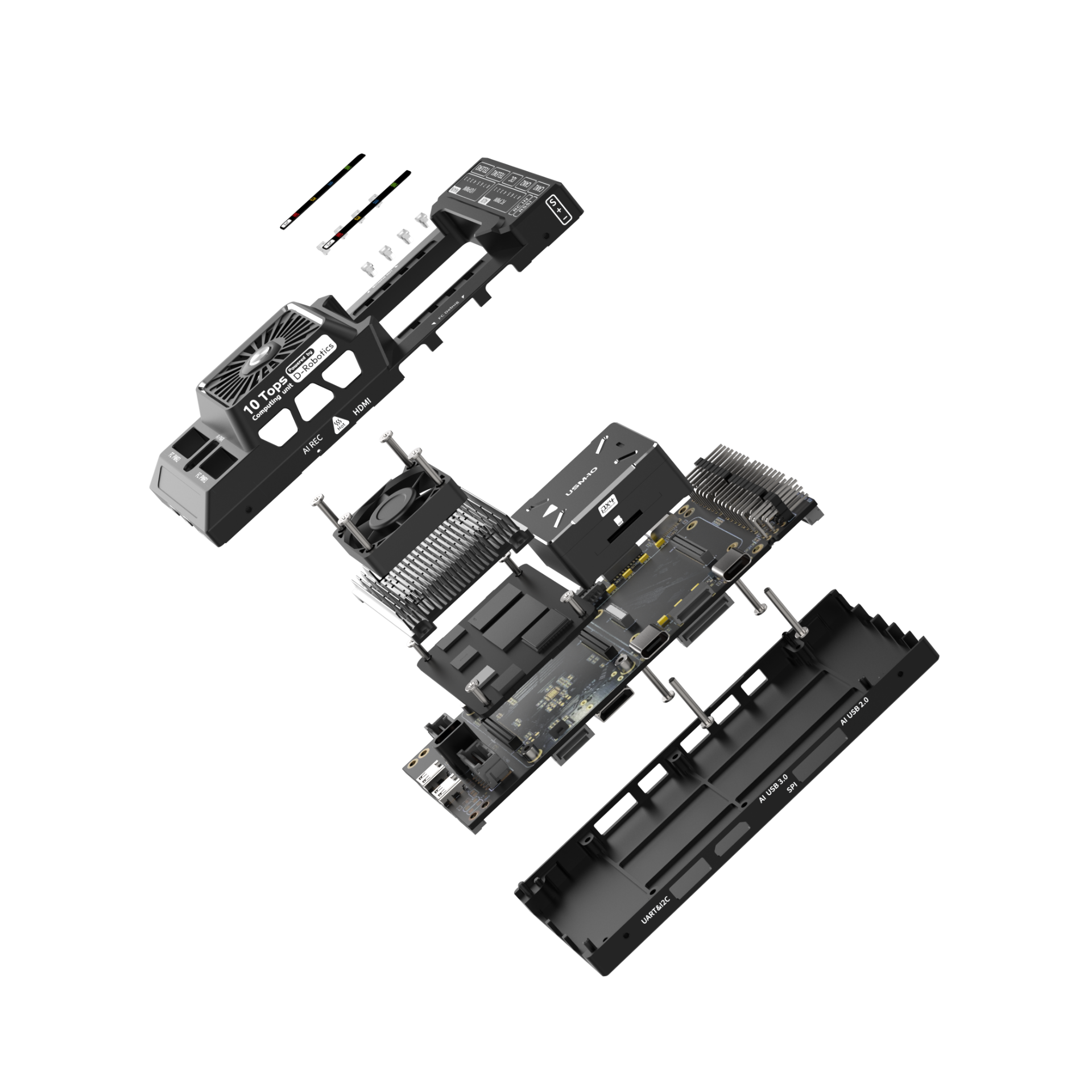

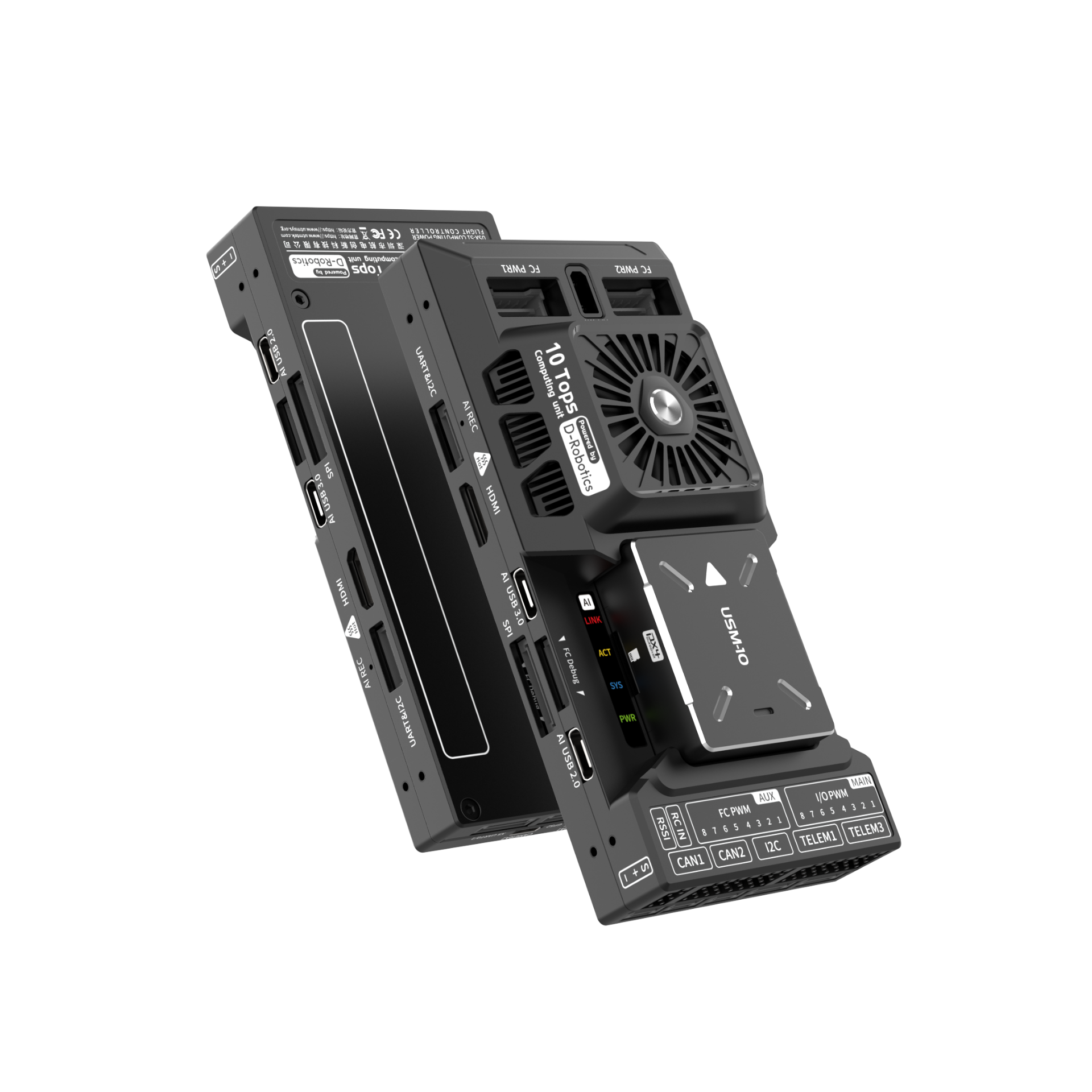

USX51 Structure
UTMTEK Innovation Technology Co., Ltd.
USX51 — Built Different
USX51 is a next-generation heterogeneous flight-control system that combines real-time stability with high-performance AI computing, enabling truly reliable autonomous flight for advanced drone applications.
- High-performance main control processor
- Triple-redundant IMUs and dual barometers
- 100 Mbps Ethernet communication interface
- Vibration isolation structure and low-noise IMUs
- PX4 & ArduPilot Dual firmware support
UTMTEK Innovation Technology Co., Ltd.

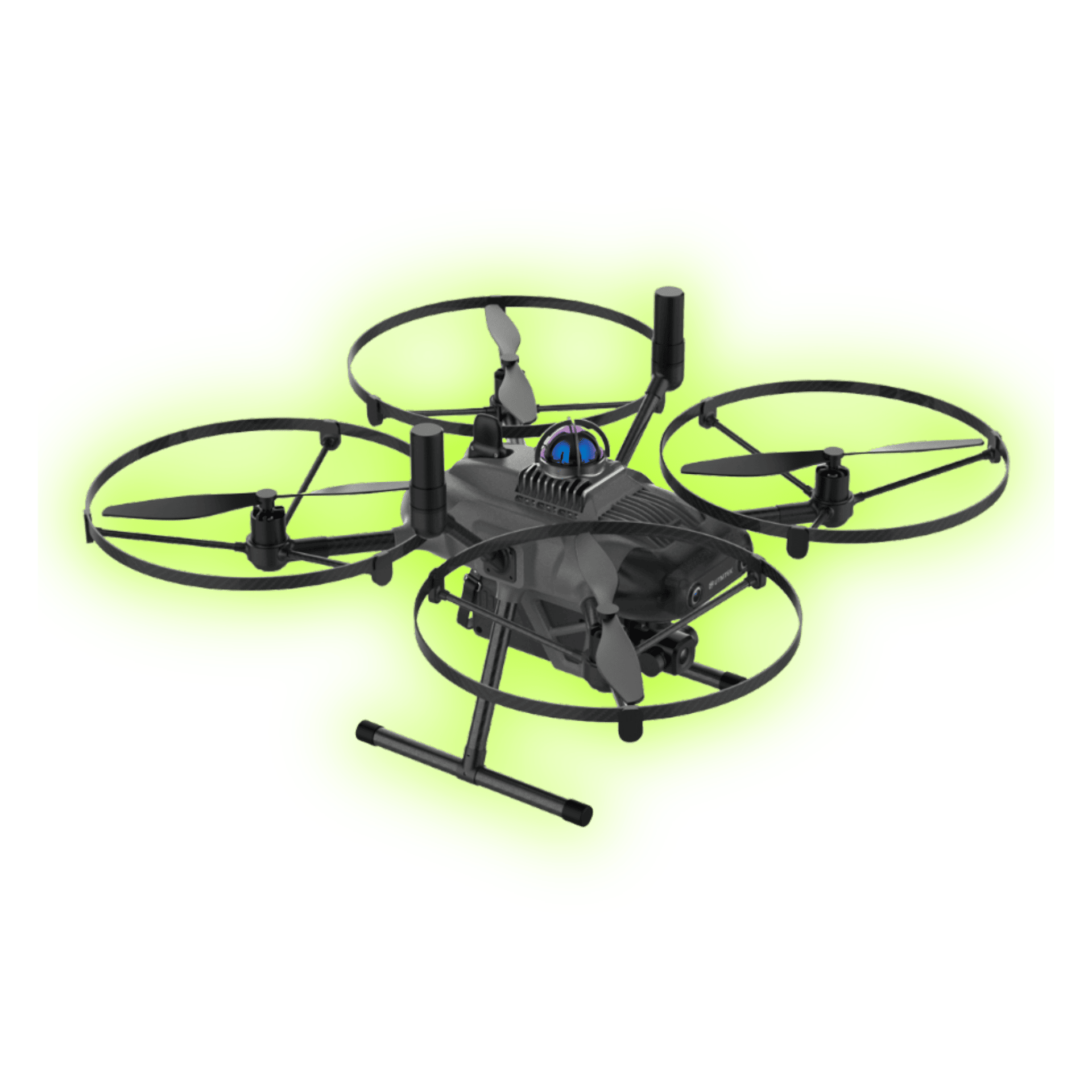

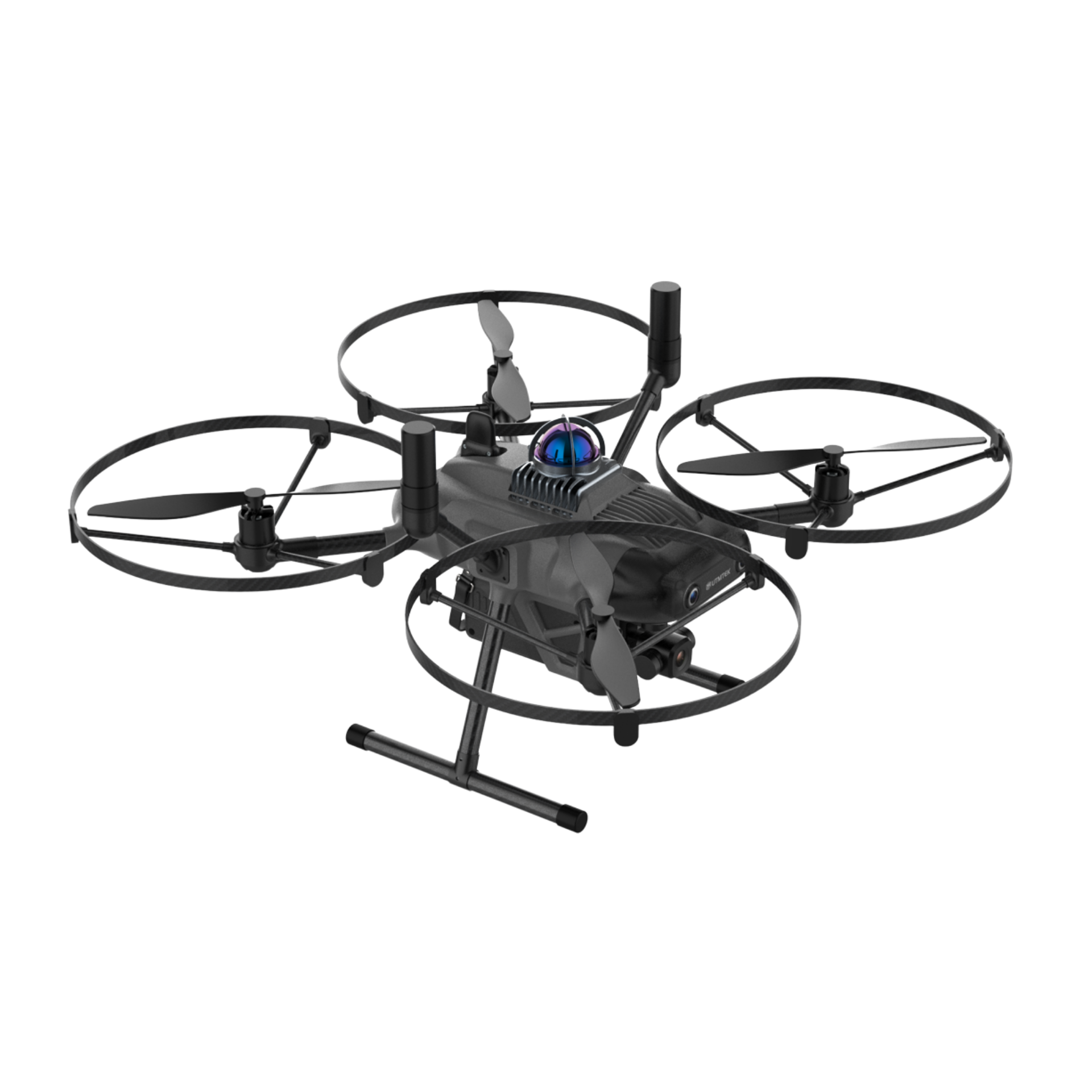

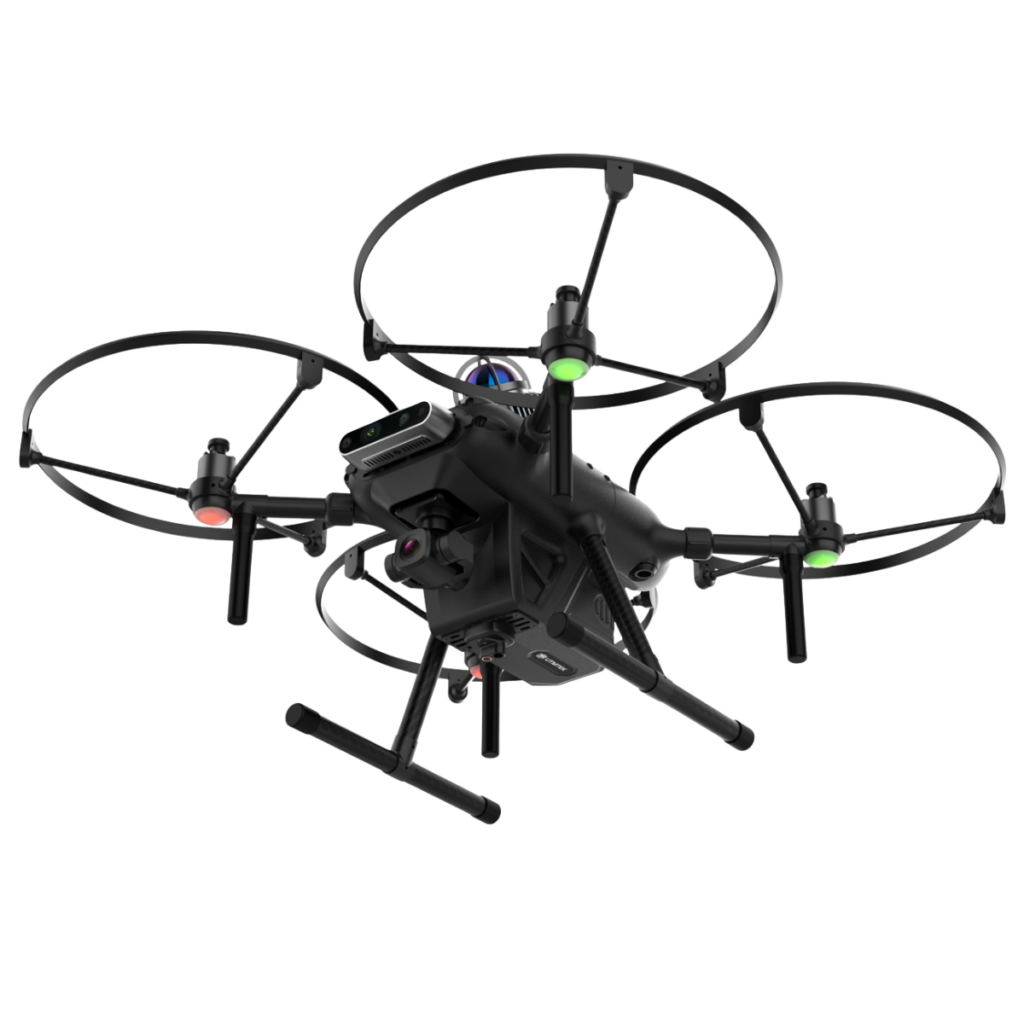

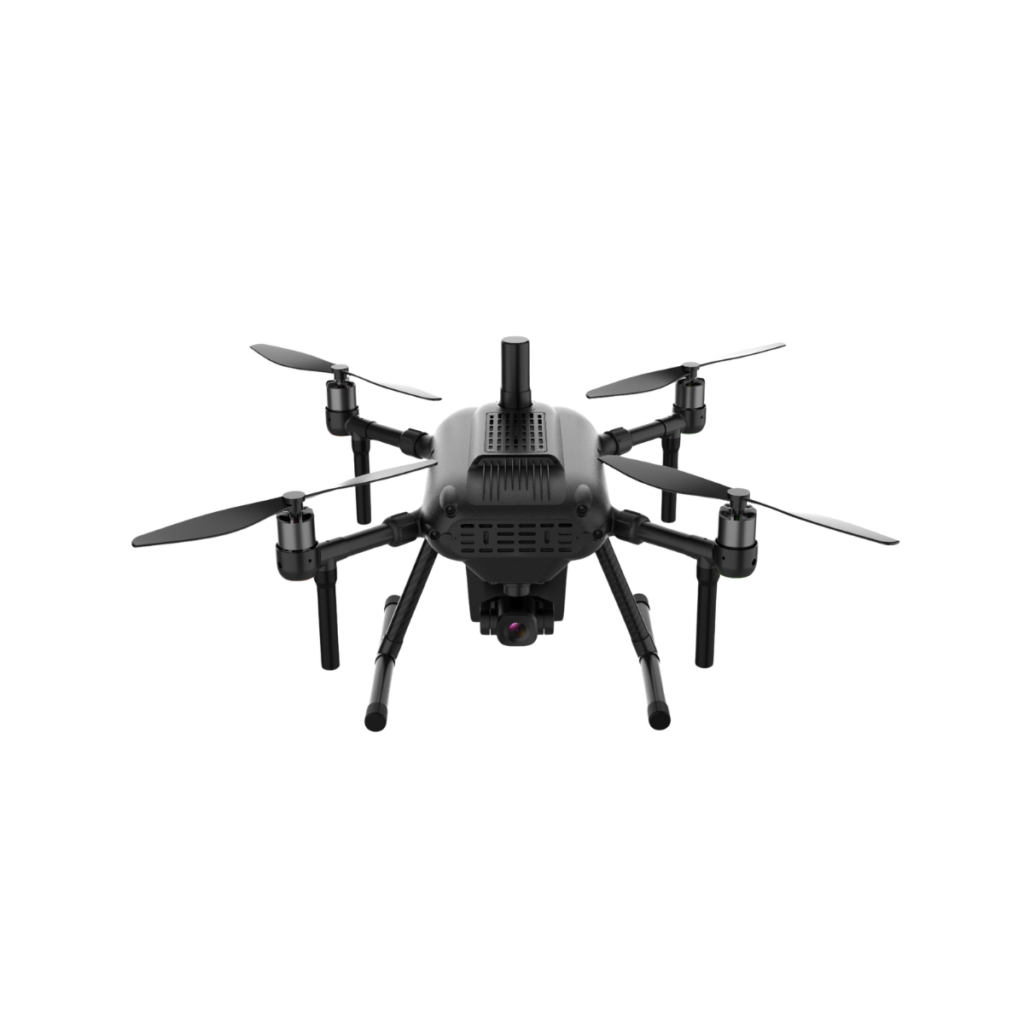

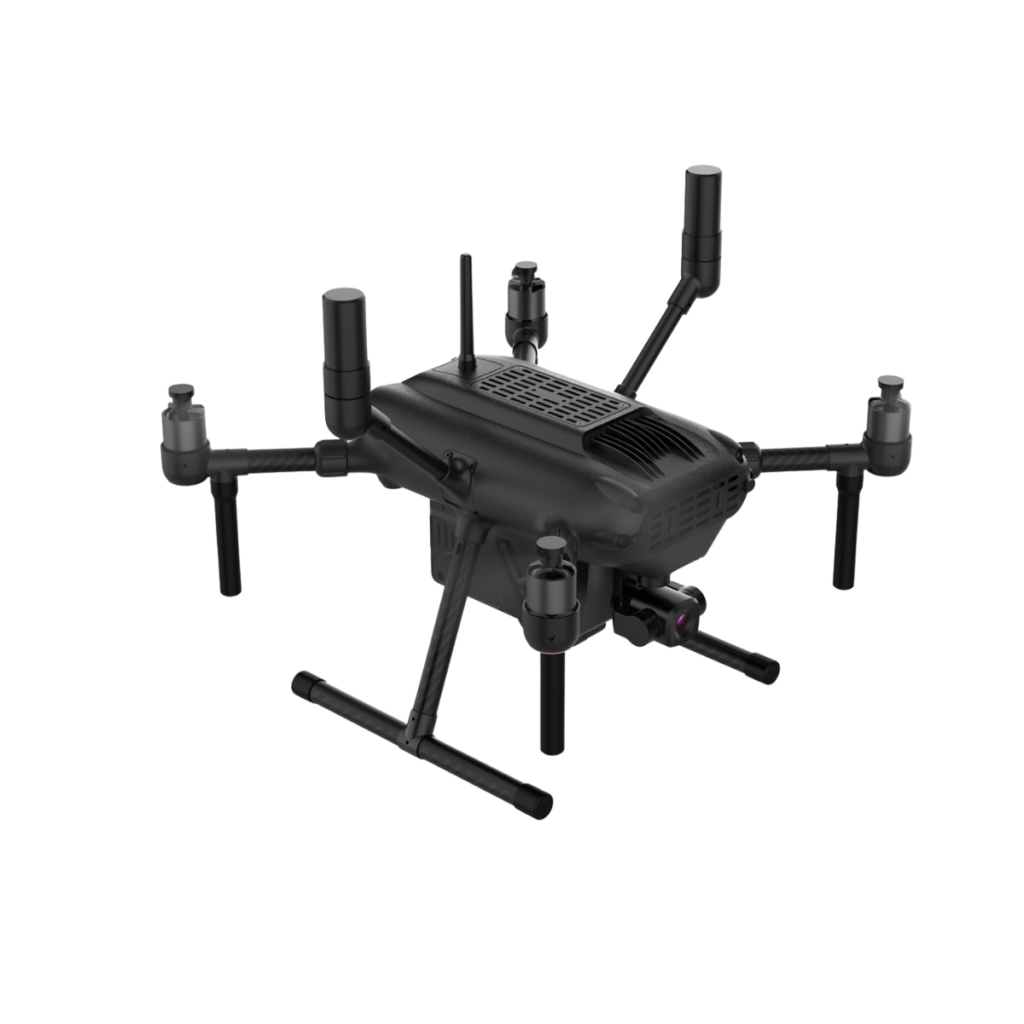

XD450 Quadcopter Drone Kit
XD450 is a modular high-precision multi-rotor UAV platform built for advanced scientific research, integrating RTK and UWB for centimeter-level positioning in indoor and outdoor environments. Equipped with LiDAR, stereo vision, and communication systems, it supports cutting-edge work in SLAM, autonomous navigation, and multi-drone collaboration.
- Eliminates rigid setups via modular, reconfigurable design
- Centimeter-level RTK and UWB positioning accuracy
- Overcomes perception limits using LiDAR and stereo vision
- Multimodal perception with LiDAR and stereo vision
- PX4 & ArduPilot Dual firmware support
UTMTEK Innovation Technology Co., Ltd.

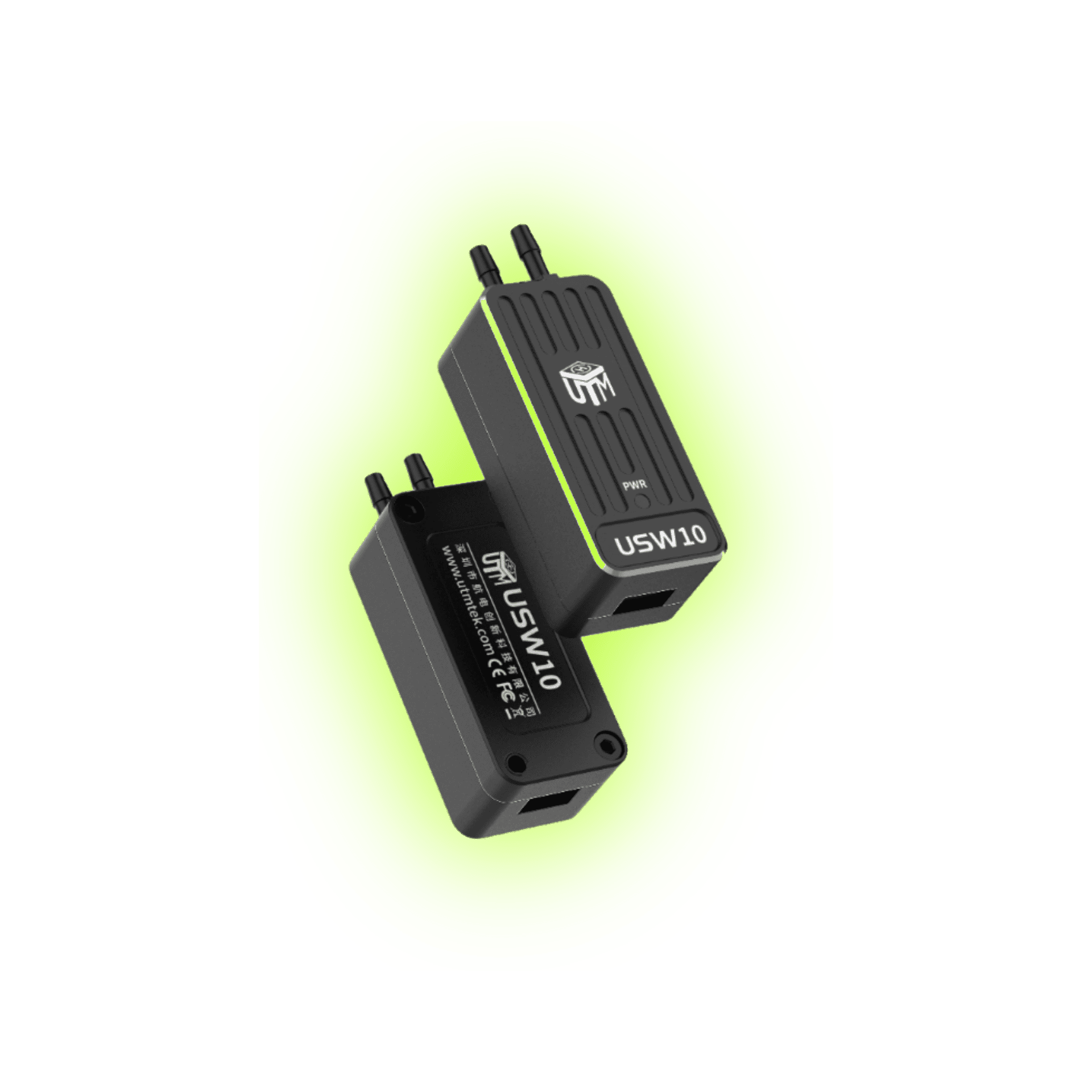

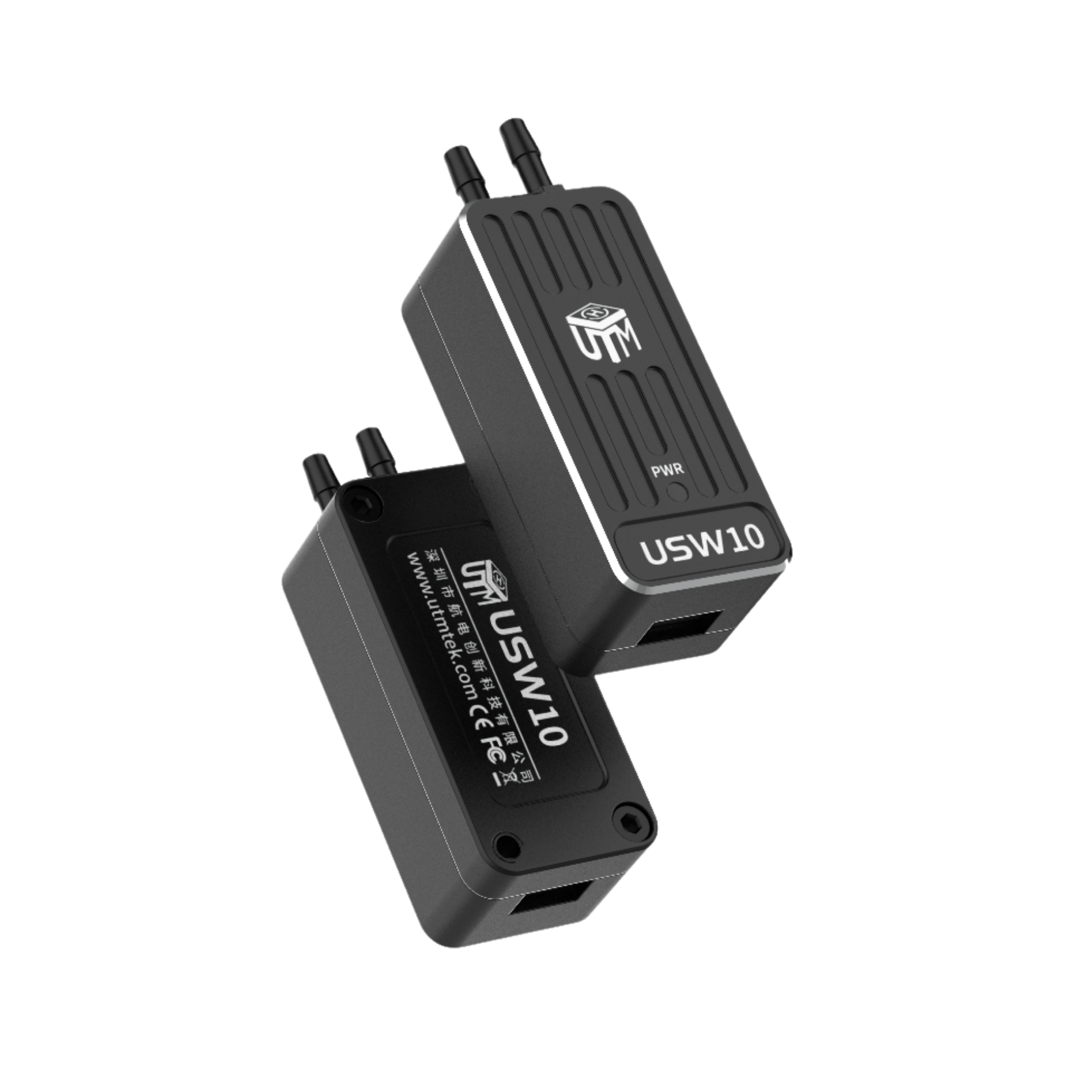

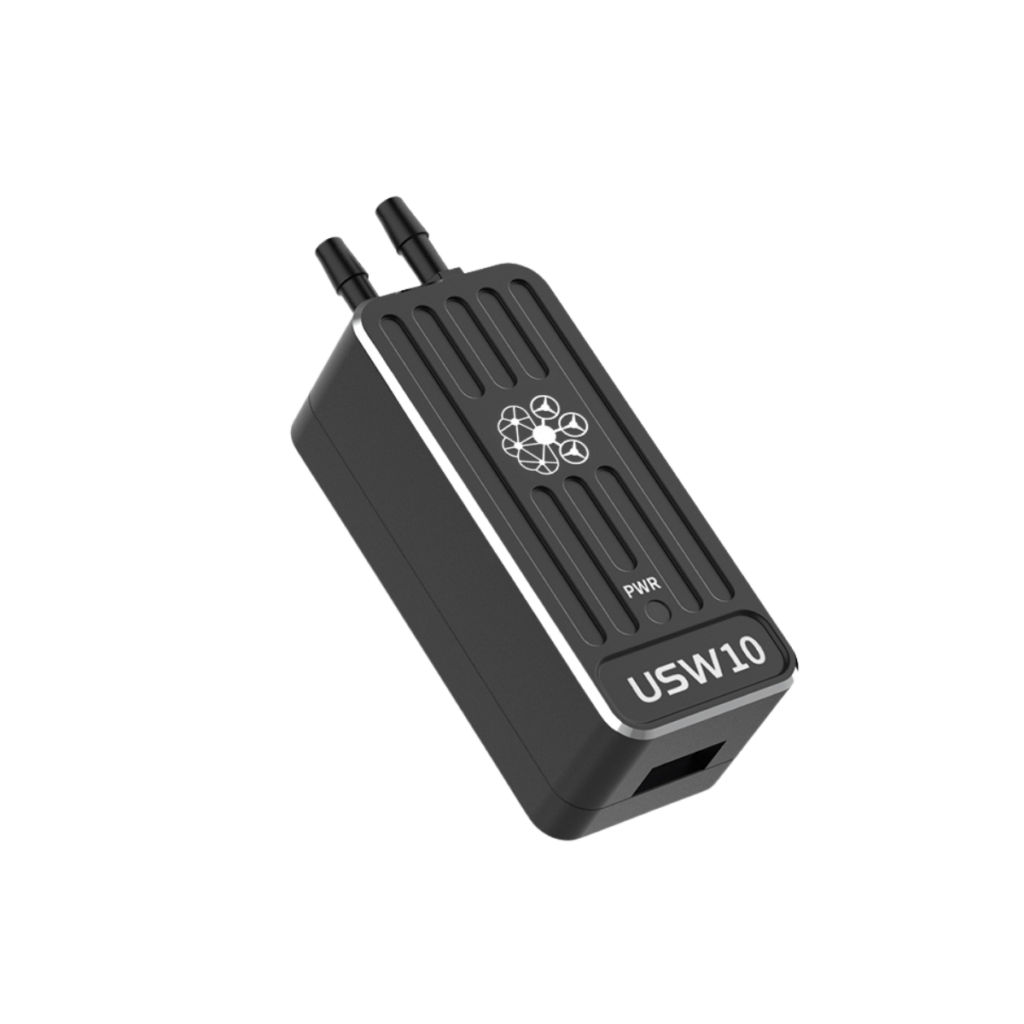

USW10 Airspeed Module
USW10 airspeed module measures total and static pressure via pitot tube to compute real-time airspeed and dynamic pressure, enabling stable flight control for fixed-wing and VTOL UAVs. It features temperature compensation, anti-interference design, and supports constant-speed flight, stall prevention, and attitude optimization.
Supply: 5V, 3mA; Interface: I2C; Pressure accuracy: 0.25% Span; Temp accuracy: 1.5°C; Update time: 0.5ms; Operating range: -25~105°C.
- Real-time airspeed calculation via pitot tube
- Improves flight stability for fixed-wing and VTOL UAVs
- Temperature compensation with anti-interference design
- High-speed response for precise control feedback
- Compact sensor with low power consumption (5V, 3mA)
UTMTEK Innovation Technology Co., Ltd.

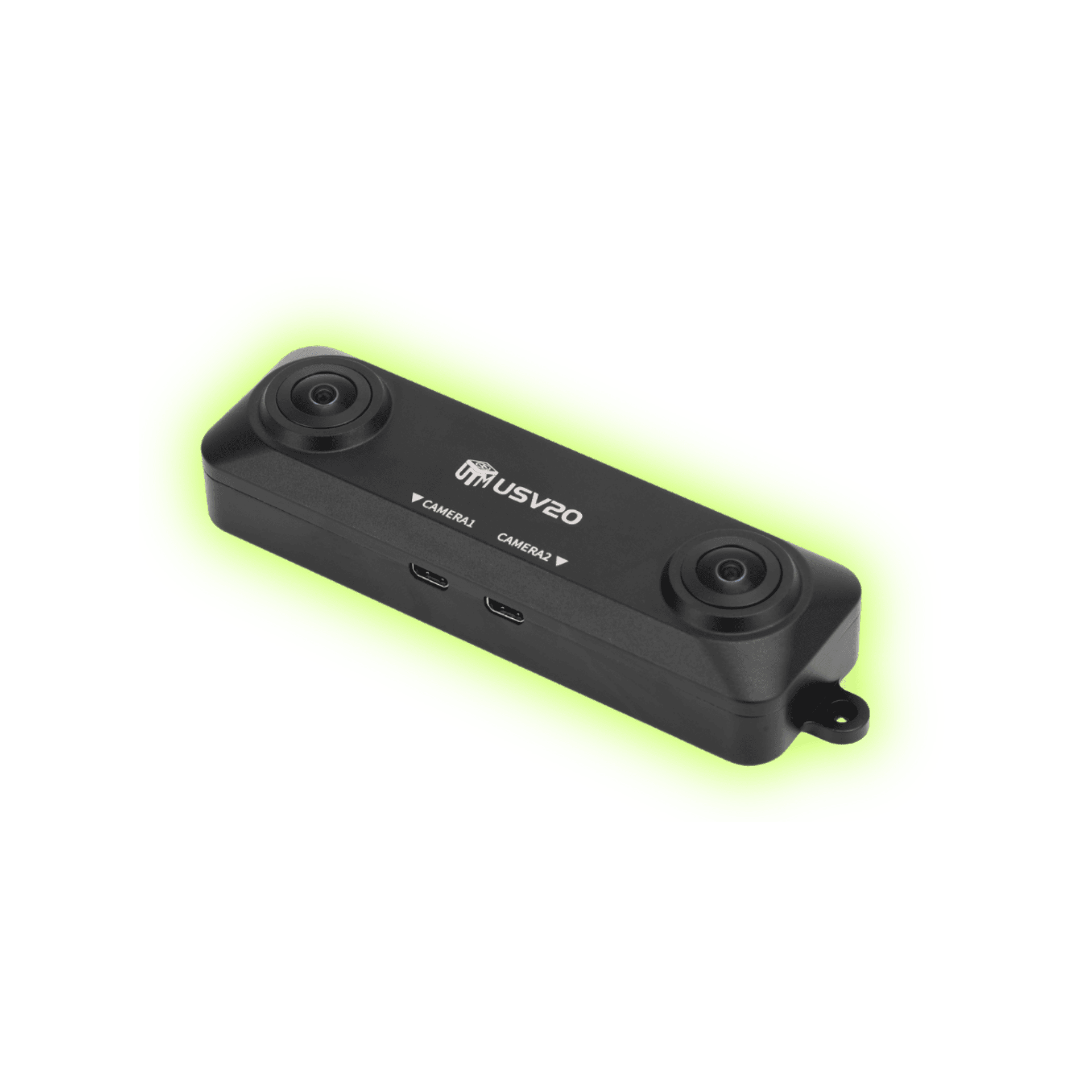

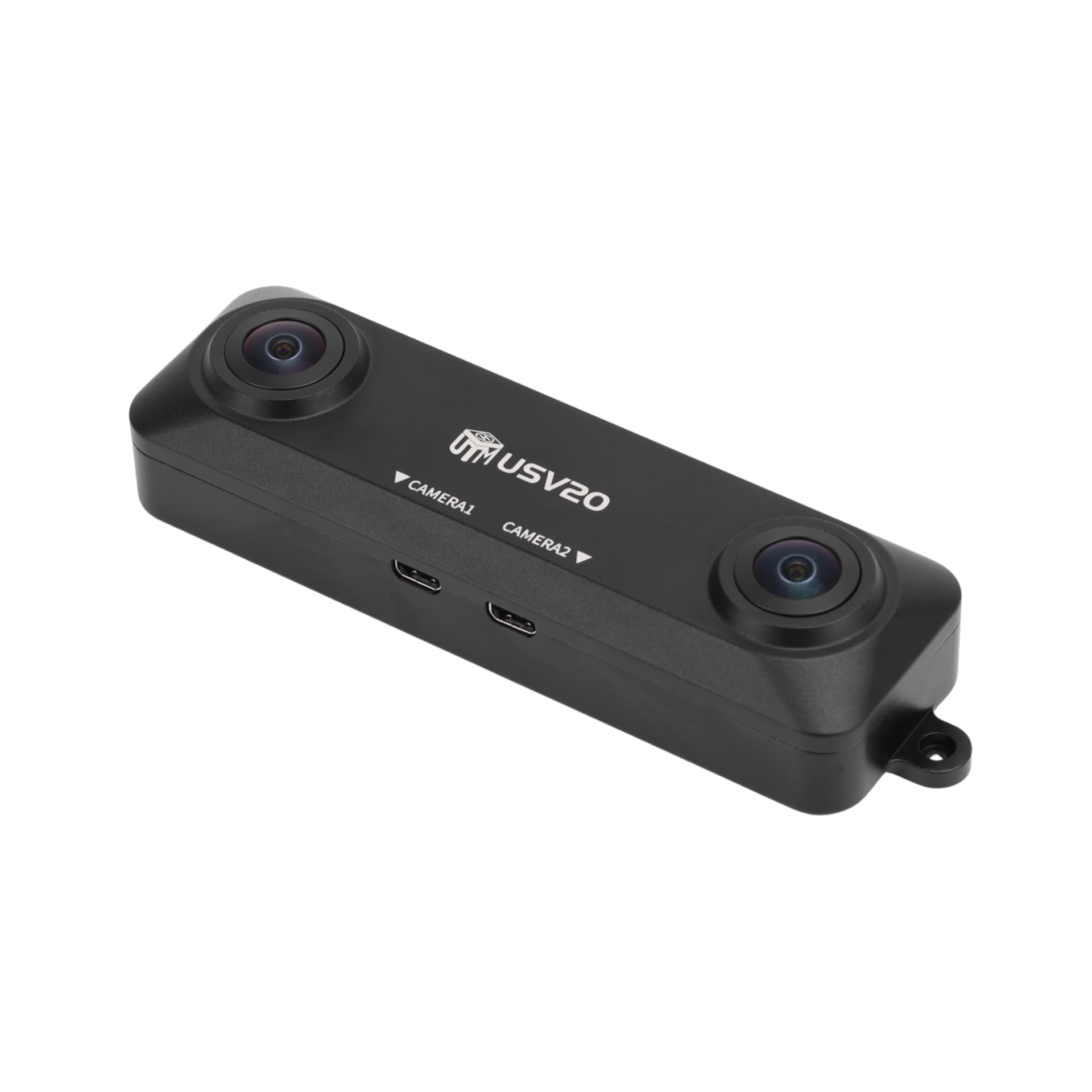

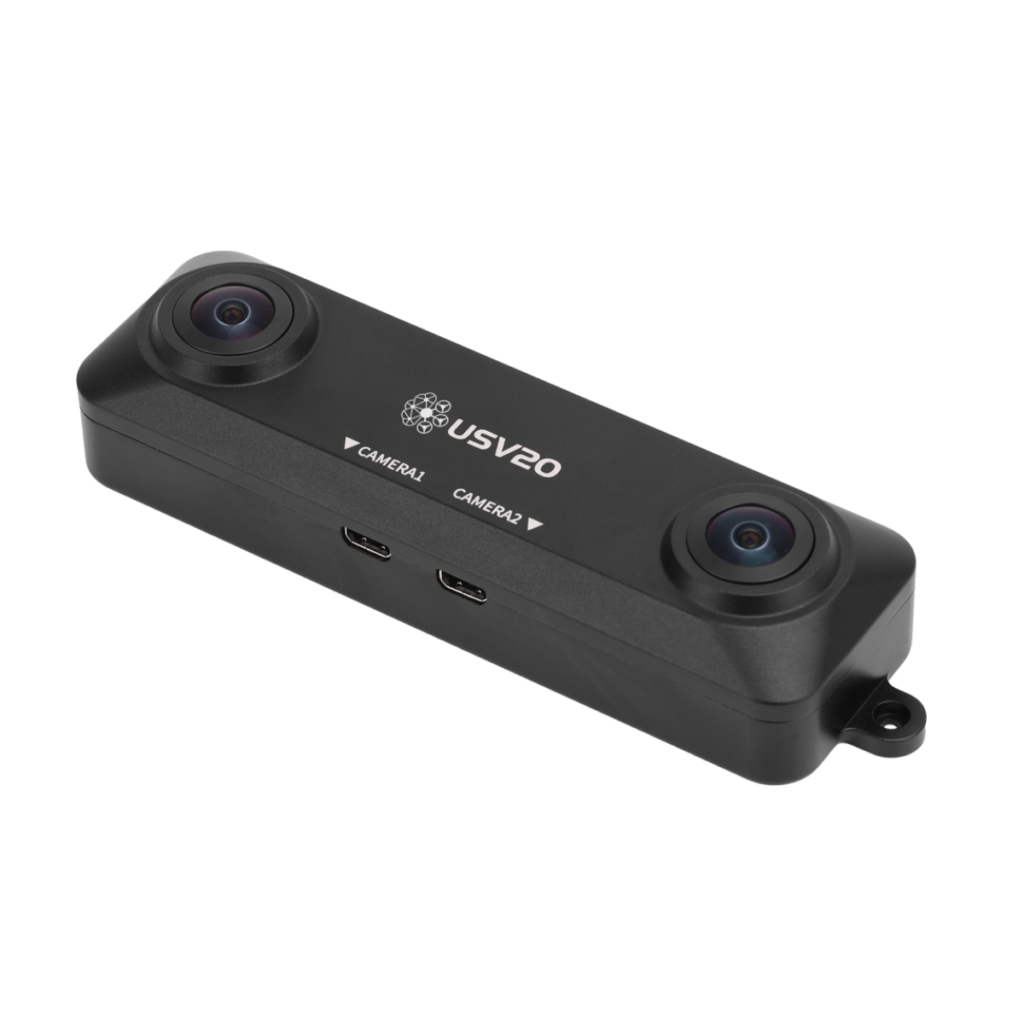

USV20 Stereo Vision Camera
USV20 stereo vision camera is a lightweight binocular perception module for drones and robots, delivering real-time depth maps, point clouds, and stereo images. It supports 3D reconstruction, SLAM, obstacle avoidance, and precise environmental sensing with hardware synchronization for stable performance in complex indoor/outdoor conditions.
2MP, 1920×1080, 60FPS; 70mm baseline; 178° FOV; MIPI CSI; 5V supply; 55g; -20~60°C.
- Real-time stereo depth perception and point cloud output
- Enables SLAM, obstacle avoidance, and 3D reconstruction
- Hardware-synchronized binocular design for stable accuracy
- Wide 178° field of view for robust environmental coverage
- Lightweight 55g module for airborne integration
UTMTEK Innovation Technology Co., Ltd.

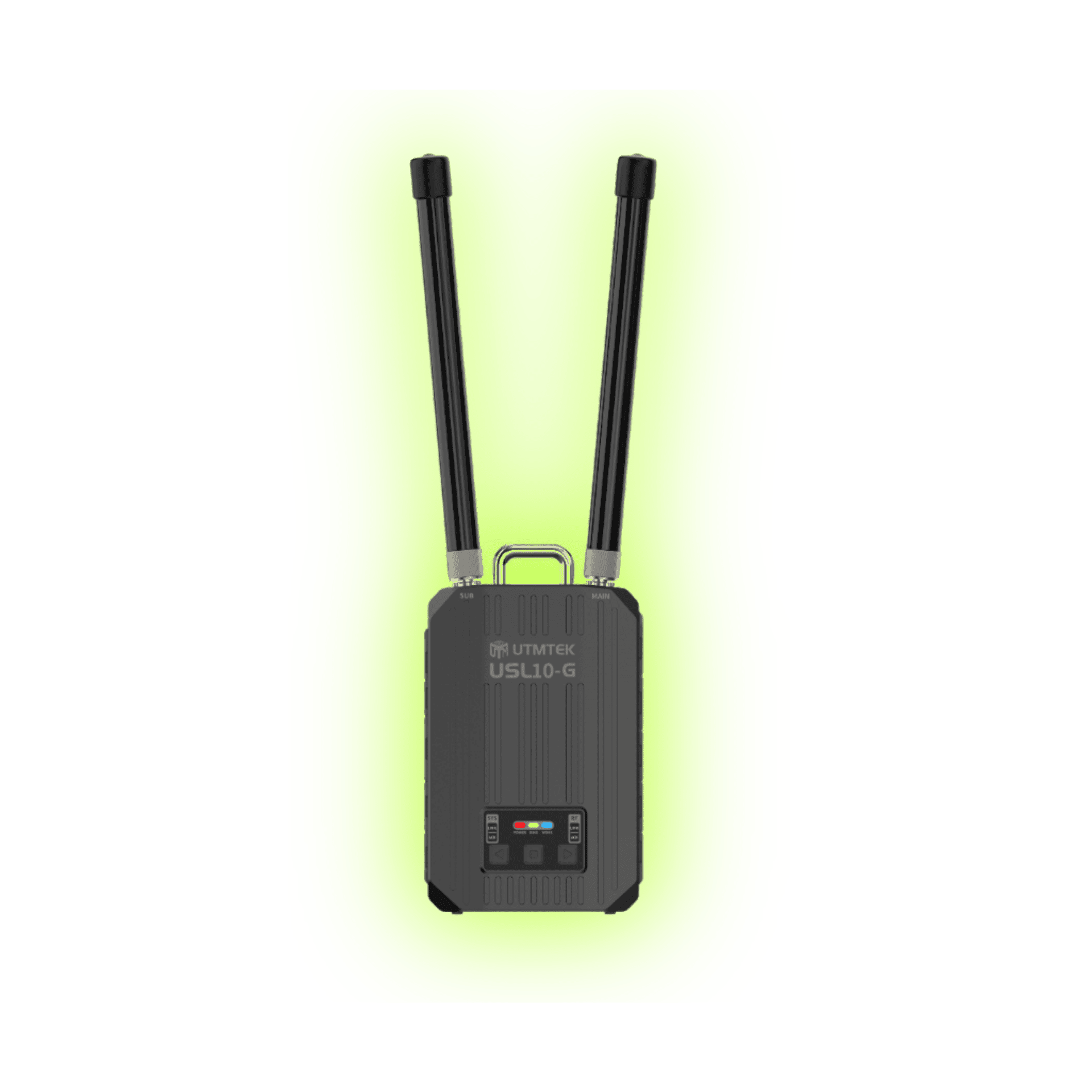

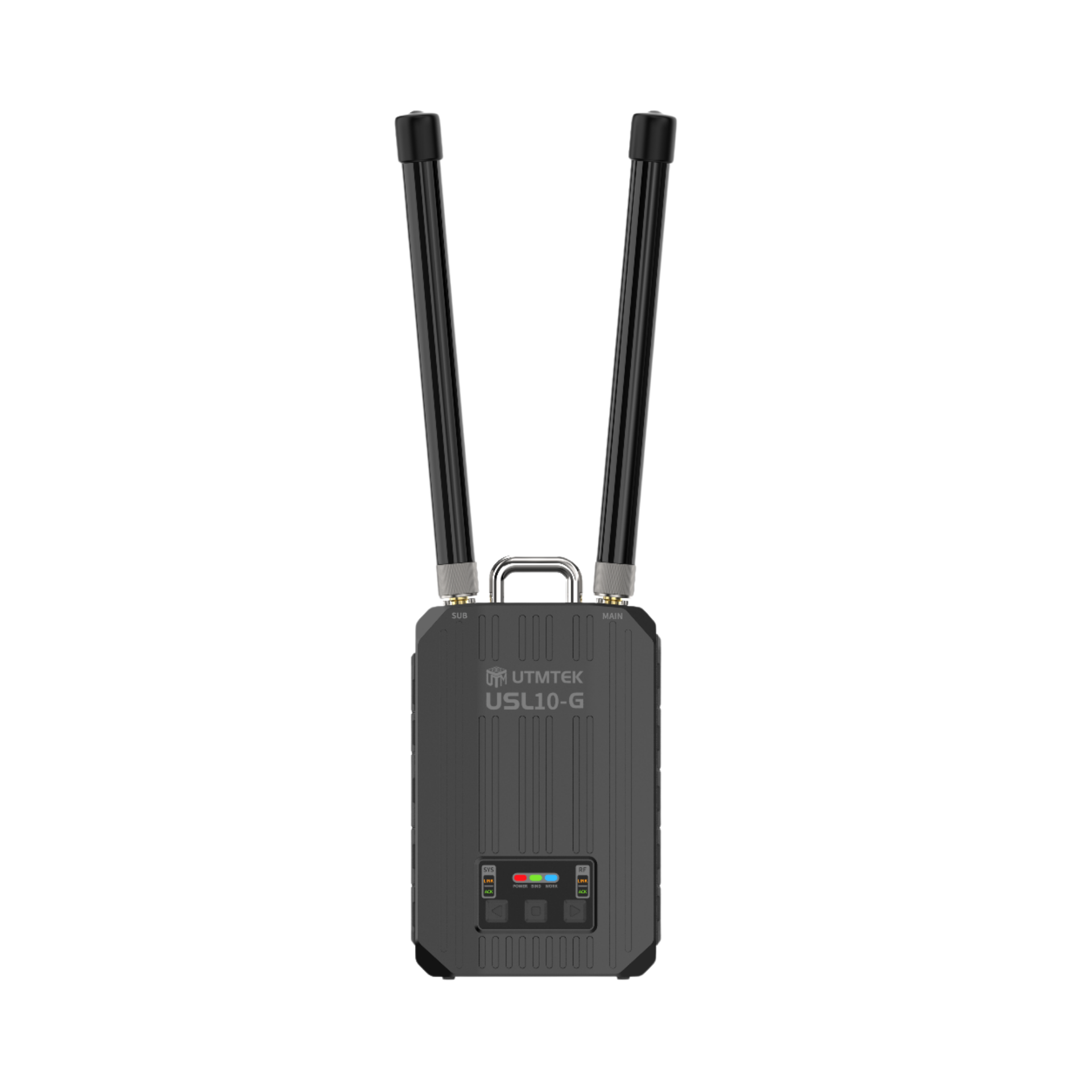

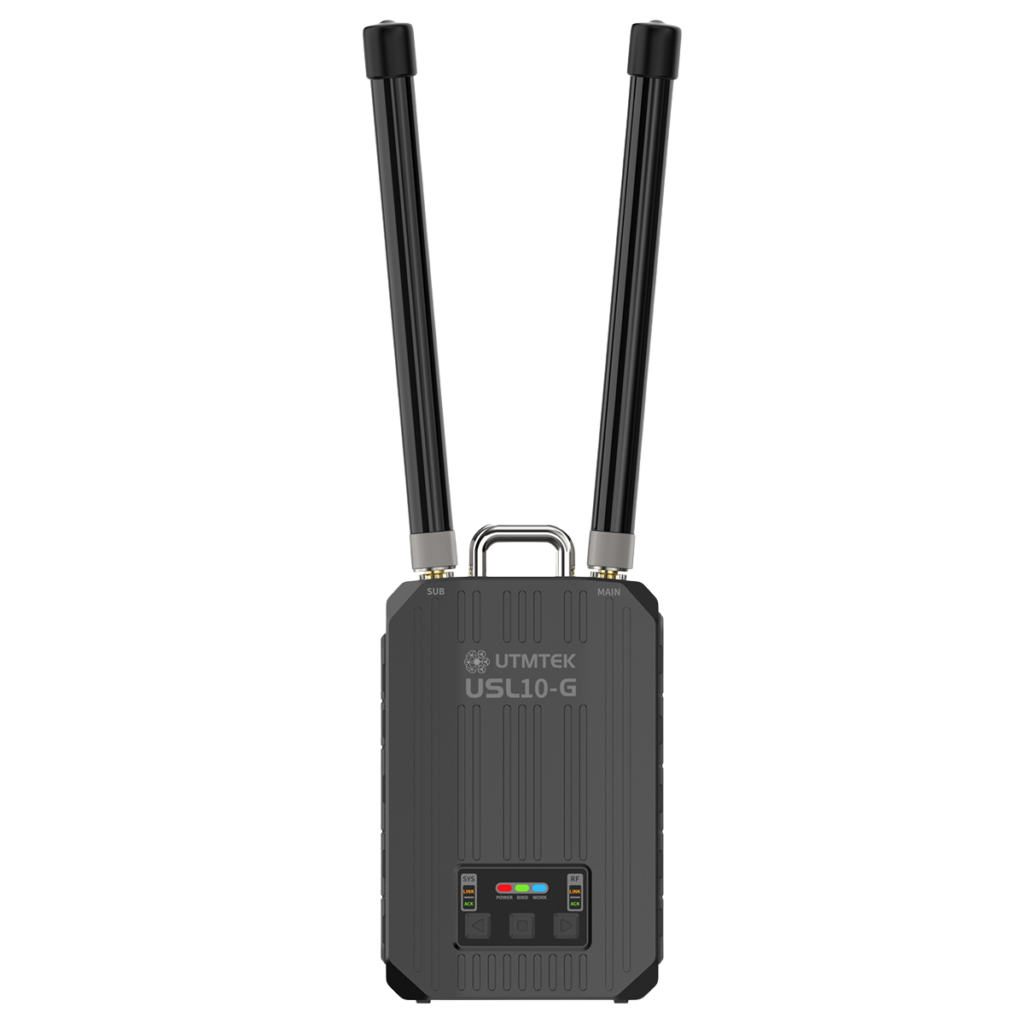

USL10 Video Transmission Ground Unit
USL10-G is a ground-side wireless link for UAVs, enabling real-time HD video, telemetry, and command transmission with low latency and strong anti-interference. It supports long-range, bidirectional image/data communication for reliable beyond-visual-range operation.
12–25V, 3W; up to 10km range; 200Kbps–160Mbps; 2.4G/5.8G; AES encryption.
- Real-time HD video and telemetry transmission
- Low latency with strong anti-interference capability
- Long-range communication up to 10 km
- Integrated bidirectional data and control link
- Wide bandwidth and adaptive frequency hopping
UTMTEK Innovation Technology Co., Ltd.

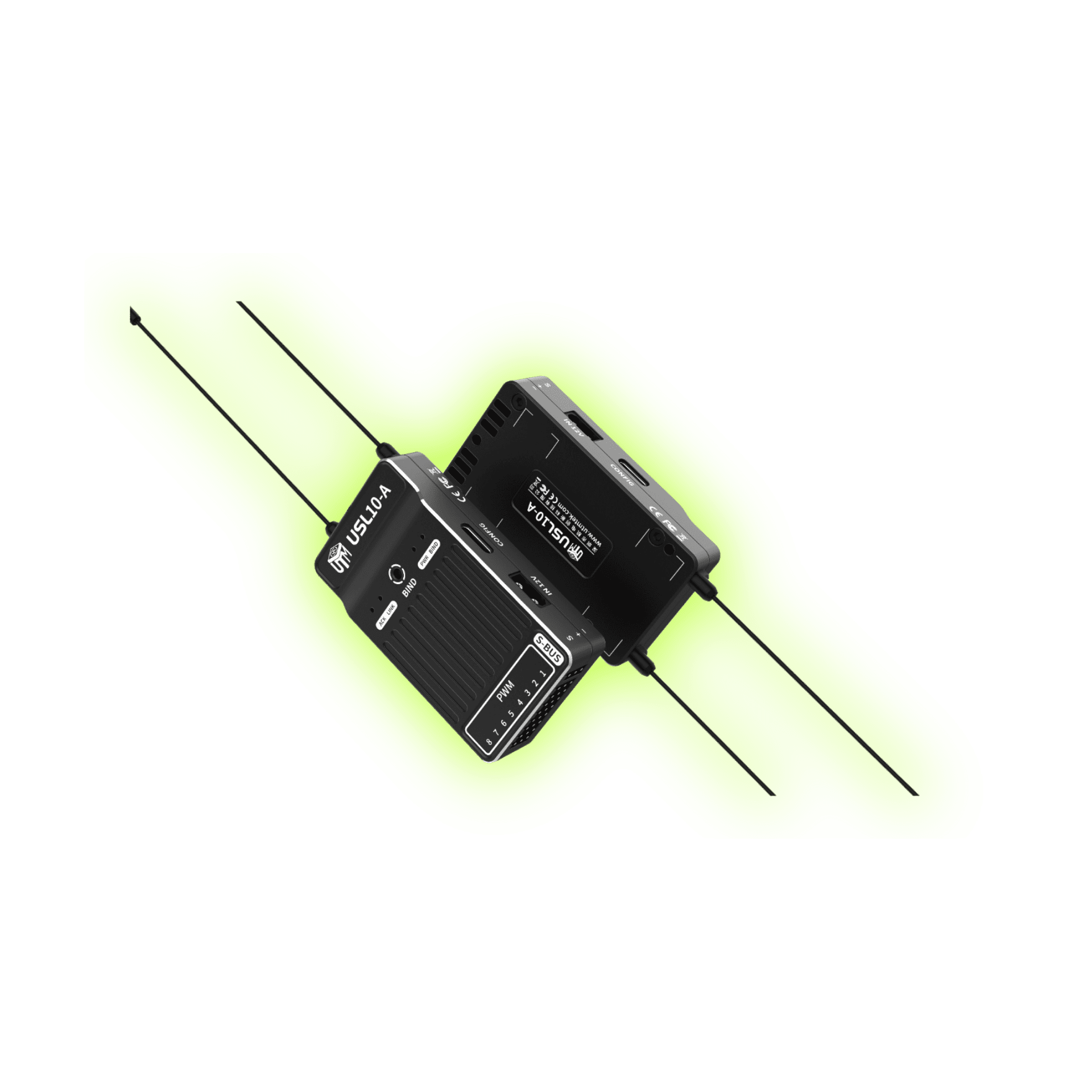

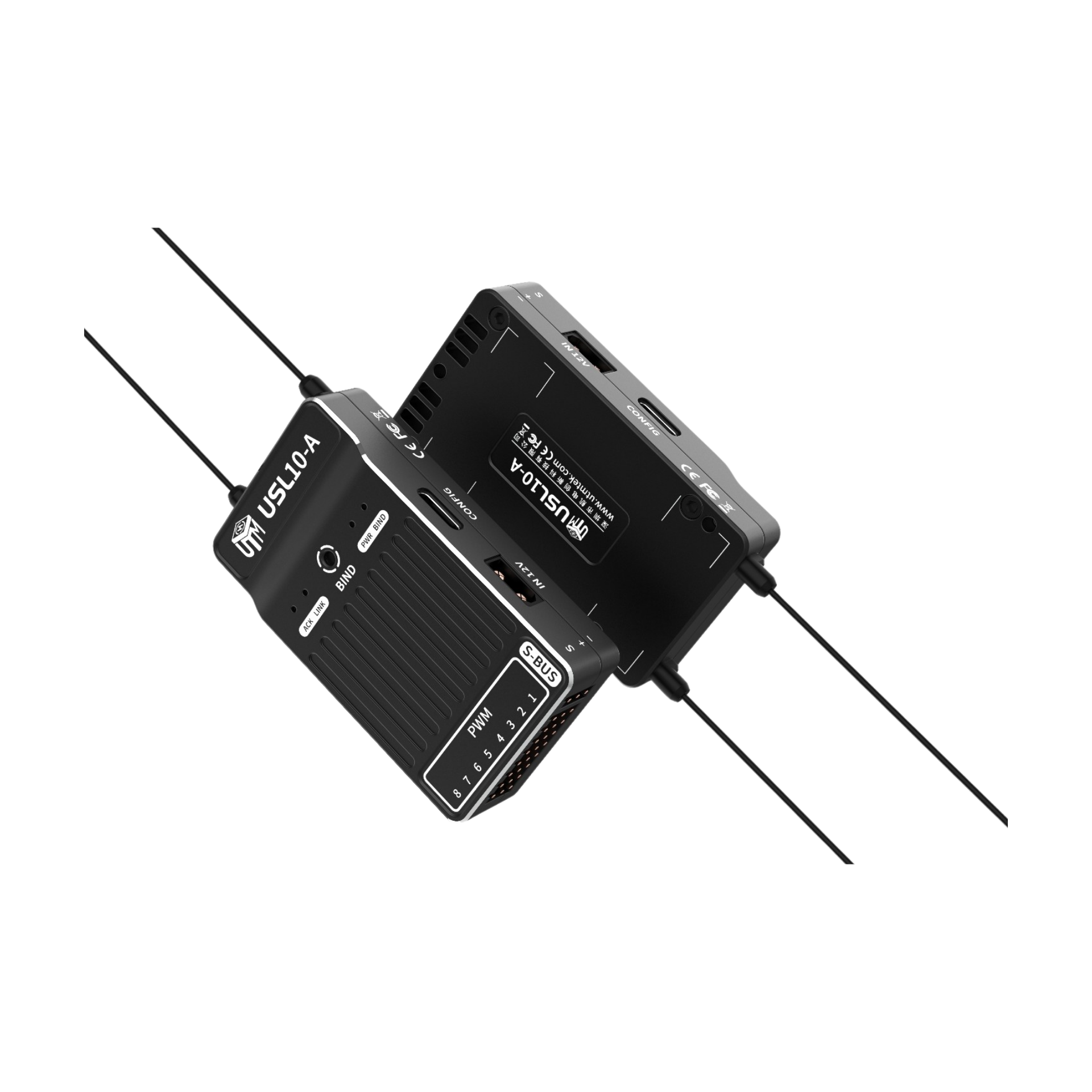

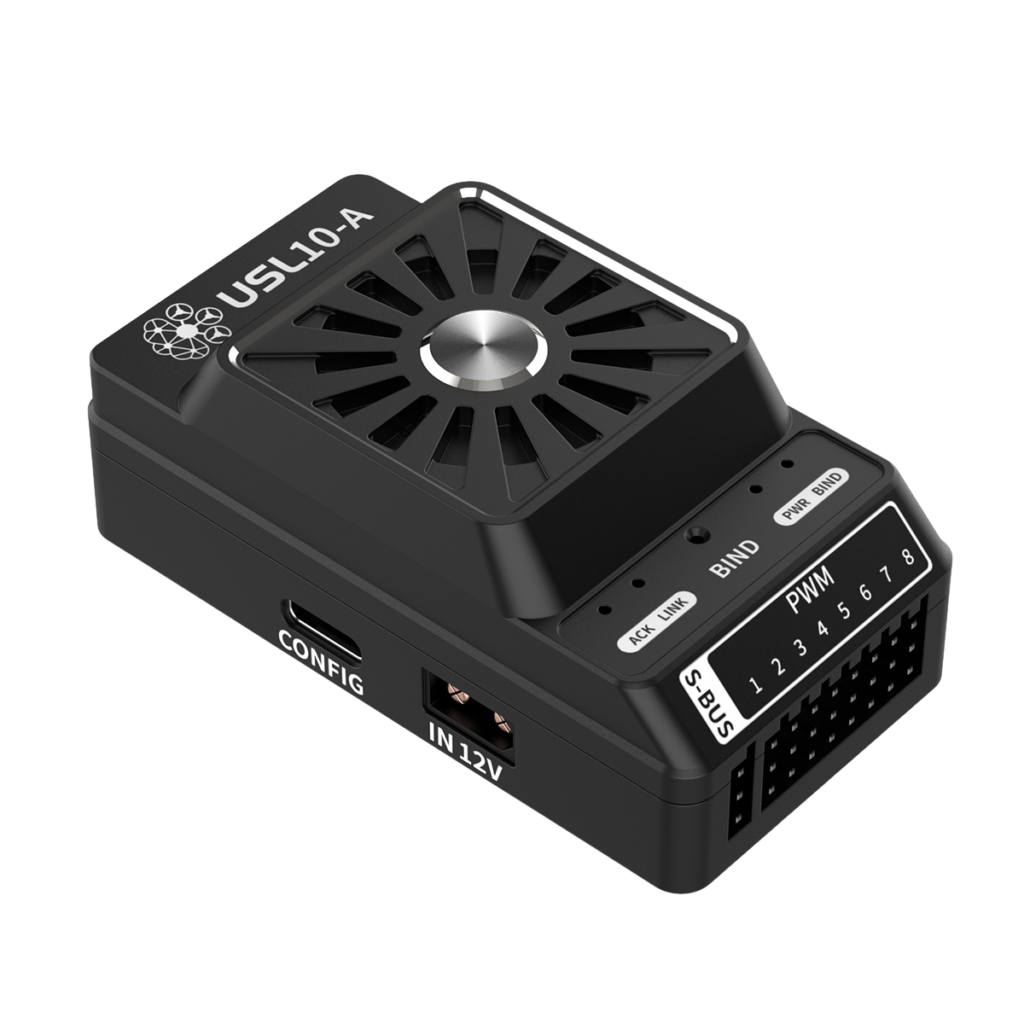

USL10 Video Transmitter Air Unit
USL10-A is an onboard image/data link module for UAVs, enabling real-time HD video, telemetry, and command transmission with low latency and strong anti-interference. It supports stable long-range communication and bidirectional data links for BLOS operations.
12V, 3W; up to 10km; 200Kbps–160Mbps; 2.4G/5.8G; AES encryption; 45g; -40~85°C.
- Real-time HD video and telemetry transmission
- Low latency with high interference resistance
- Long-range link up to 10 km
- Integrated bidirectional communication
- Compact, lightweight onboard design
UTMTEK Innovation Technology Co., Ltd.

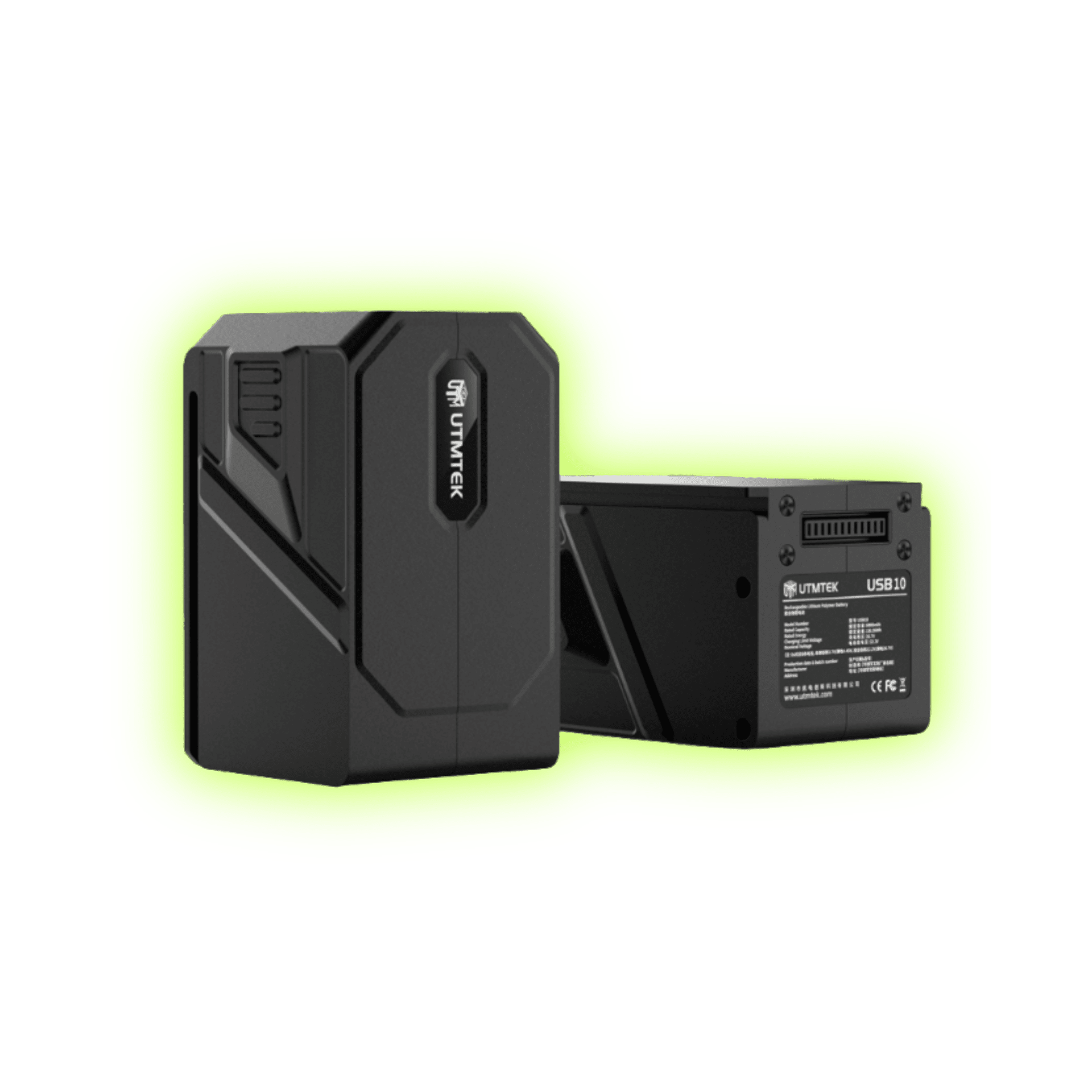

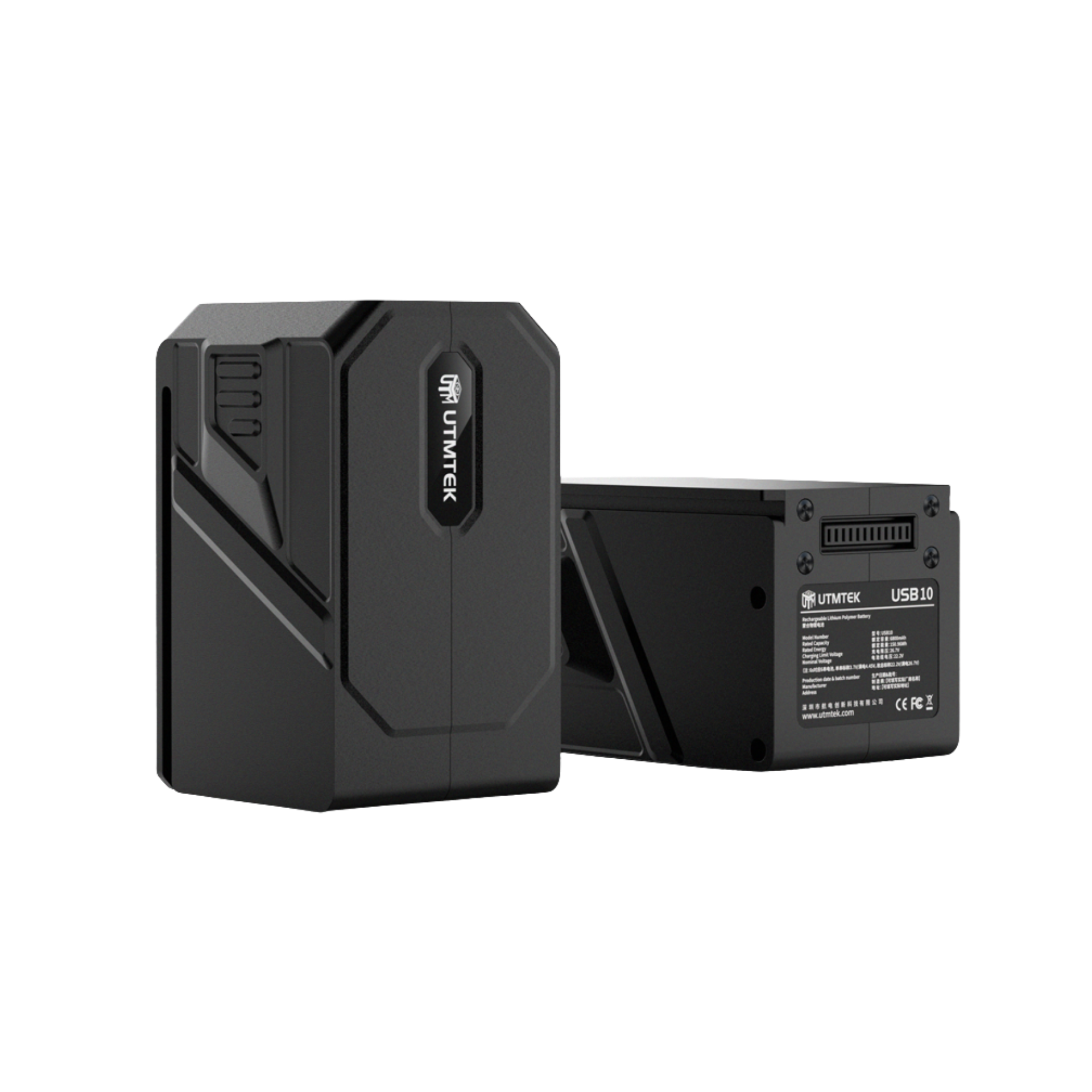

USB10 Smart Battery
Smart UAV battery with lithium-ion cells integrates charging management, real-time monitoring, and multiple protections (overcharge, discharge, current, temp). It features LED display and intelligent control for safe, stable, and efficient power with extended lifespan.
6800mAh, 150Wh; 22.2V; CAN; 811g; -20~60°C.
- Intelligent power management with real-time monitoring
- Multiple safety protections for reliable operation
- LED indicators for clear battery status display
- Cell balancing for extended battery lifespan
- High-capacity design for stable flight endurance
UTMTEK Innovation Technology Co., Ltd.

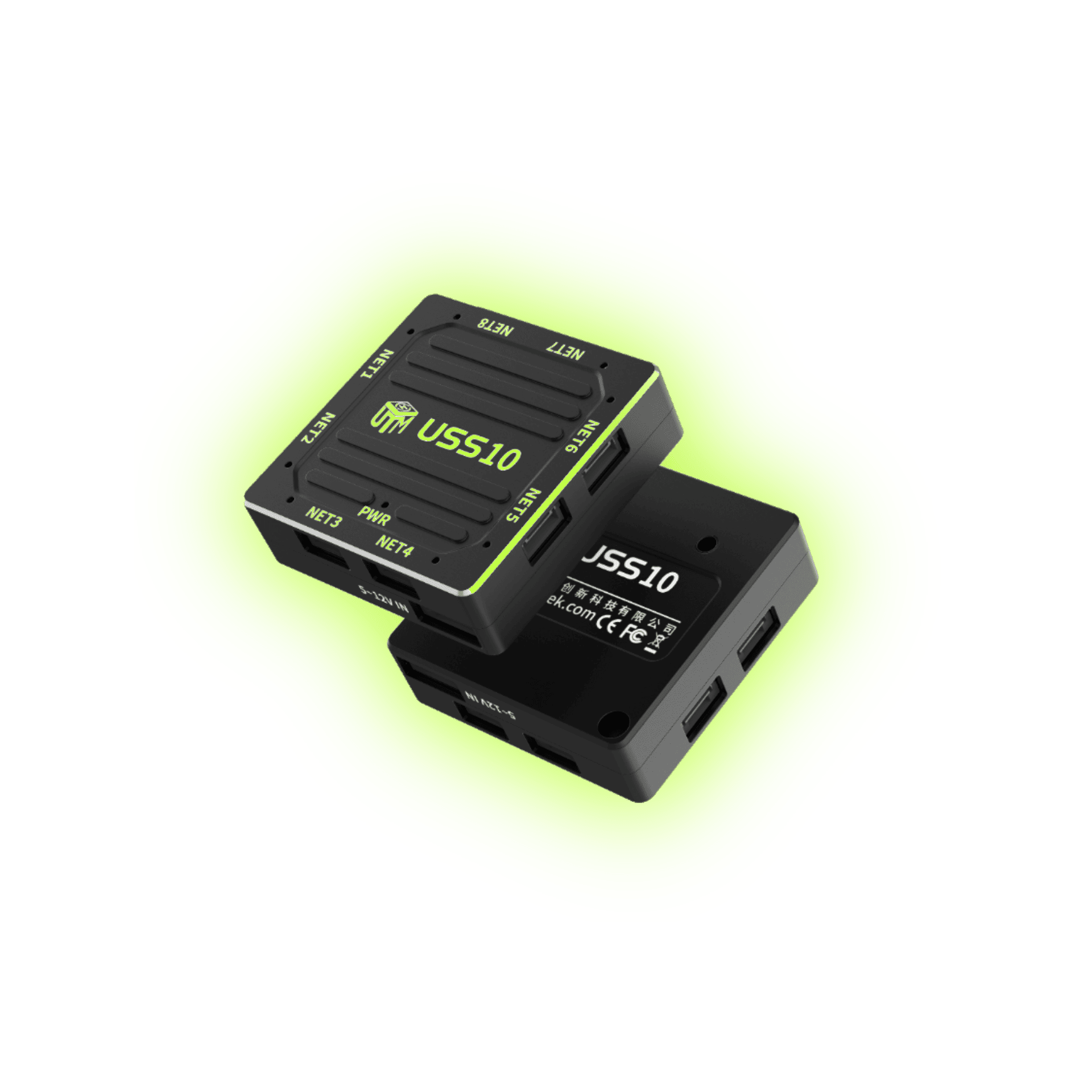

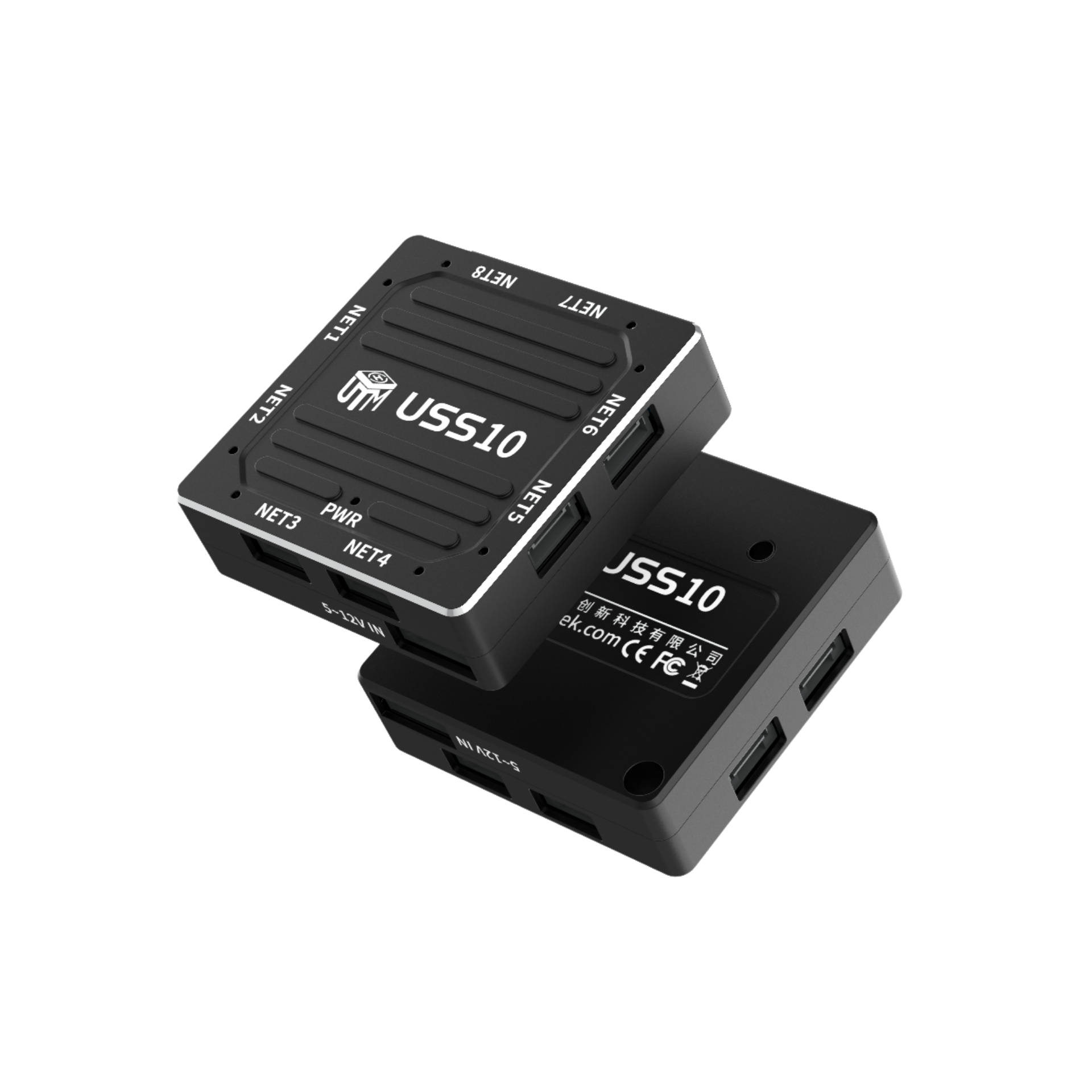

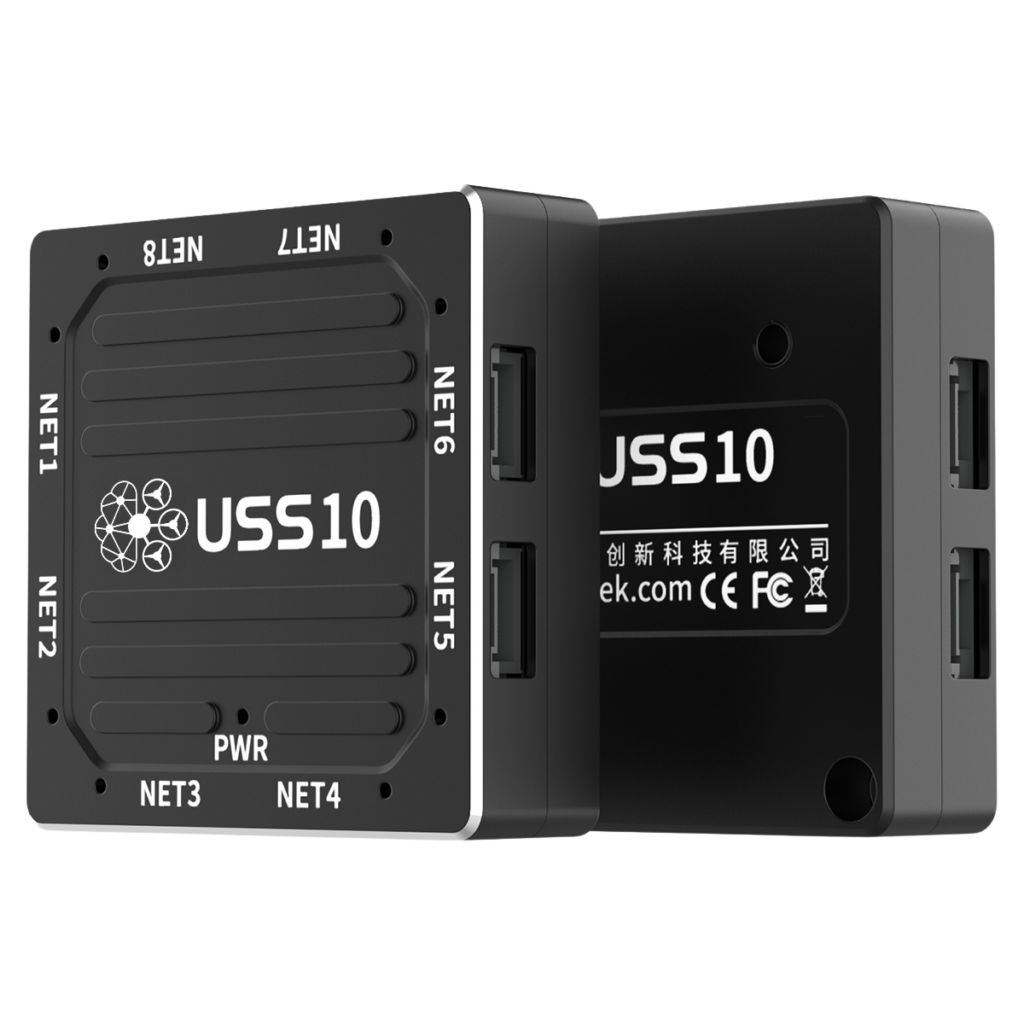

USS10 100 Mbps Switch
USS10 is a lightweight 100Mbps airborne Ethernet switch for UAVs, enabling stable multi-device networking and high-speed data exchange between flight controllers, sensors, and communication modules. Designed for harsh environments with anti-vibration and interference resistance.
5–12V, <2W; 8 ports; 10/100Mbps; 20g; -20~70°C.
- Stable 100Mbps Ethernet data switching
- Supports multi-device onboard network integration
- Anti-vibration and anti-interference design
- Compact, lightweight (20g) for airborne use
- Plug-and-play with reliable data transmission
UTMTEK Innovation Technology Co., Ltd.

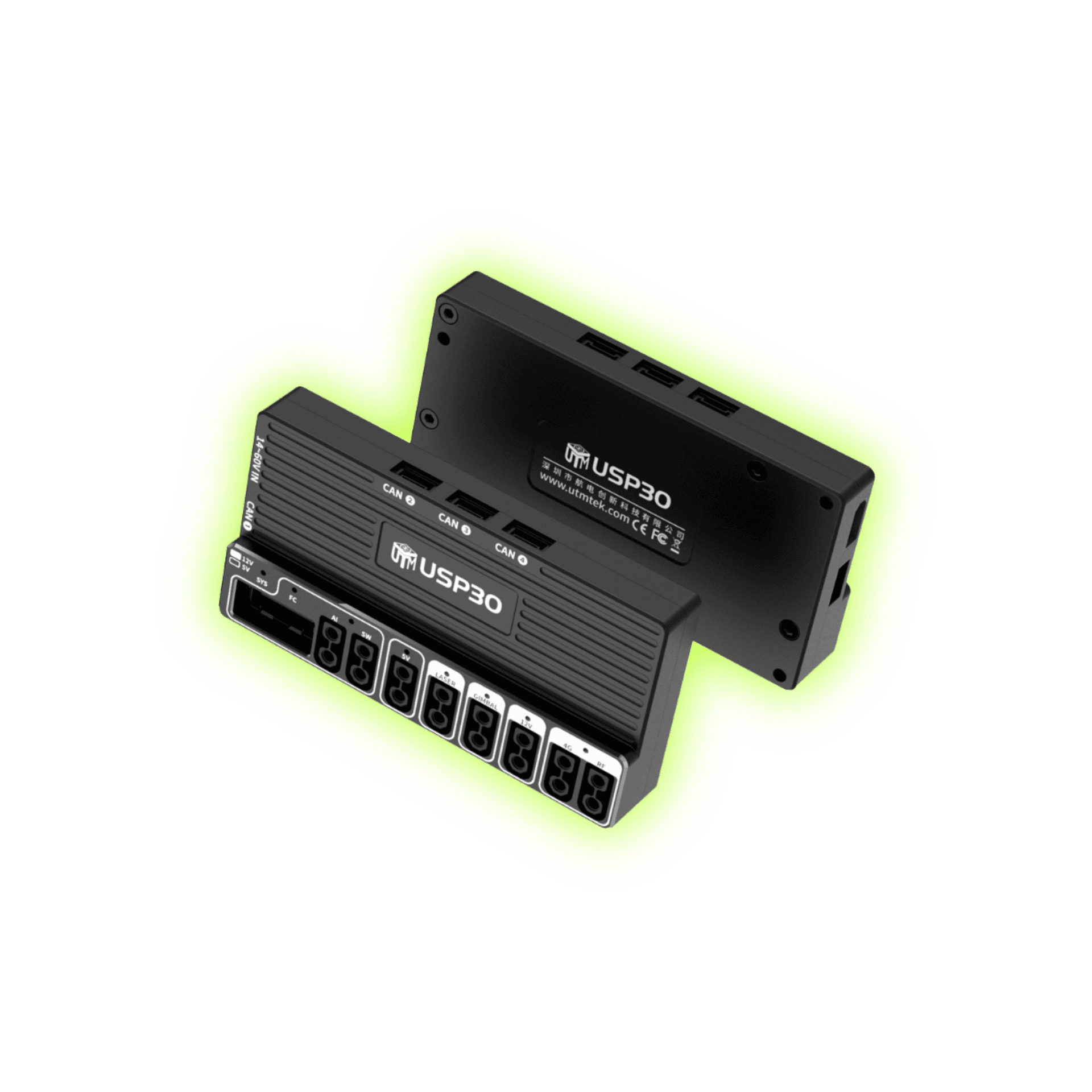

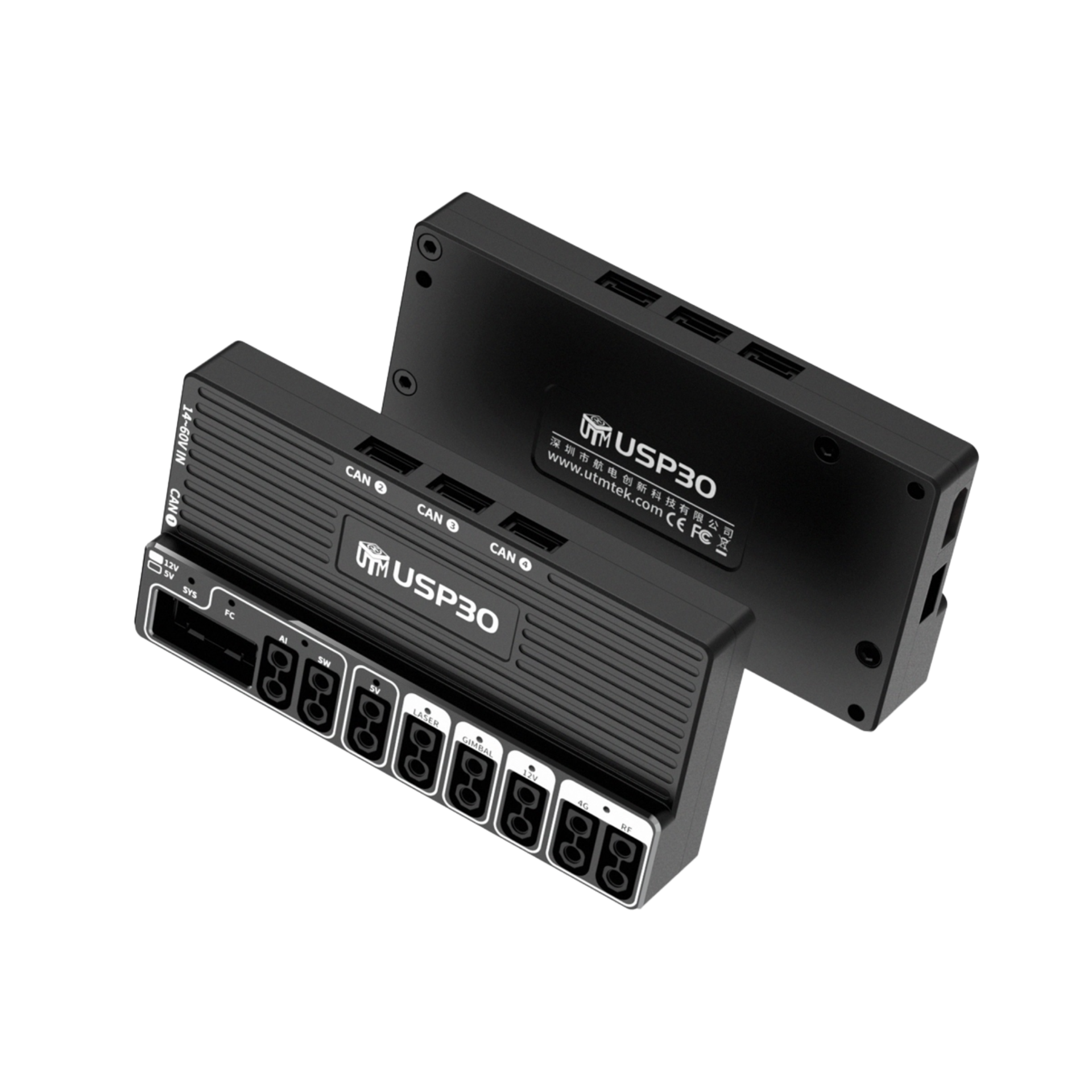

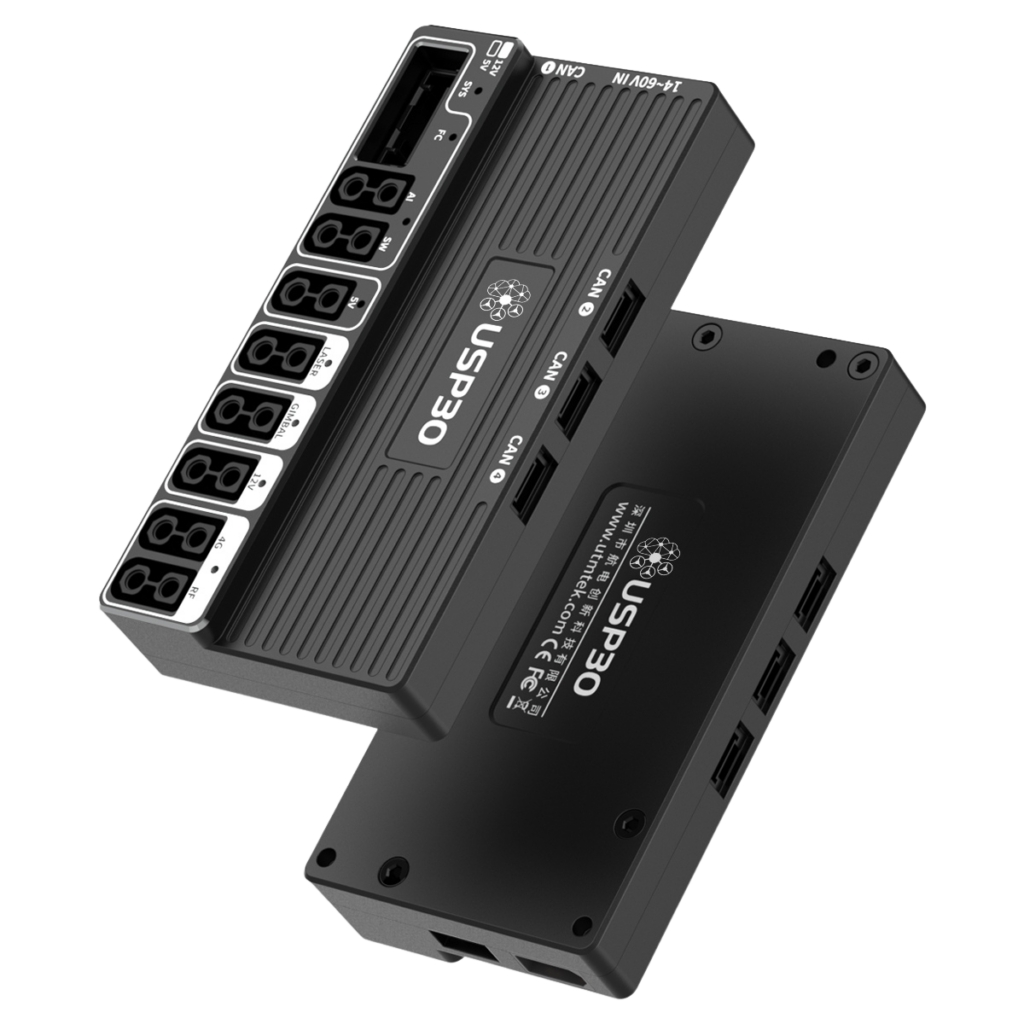

USP30 Integrated Power Supply
Integrated UAV power module combining power distribution, regulation, monitoring, and protection to deliver stable multi-channel supply for onboard systems, improving safety, reliability, and wiring simplicity.
14–60V input; 5V/5A & 12V/5A output; 66g; -20~80°C.
- Integrated power distribution and voltage regulation
- Real-time voltage and current monitoring
- Multi-channel stable output for onboard devices
- Built-in protection for safe operation
- Compact design simplifying system wiring
UTMTEK Innovation Technology Co., Ltd.

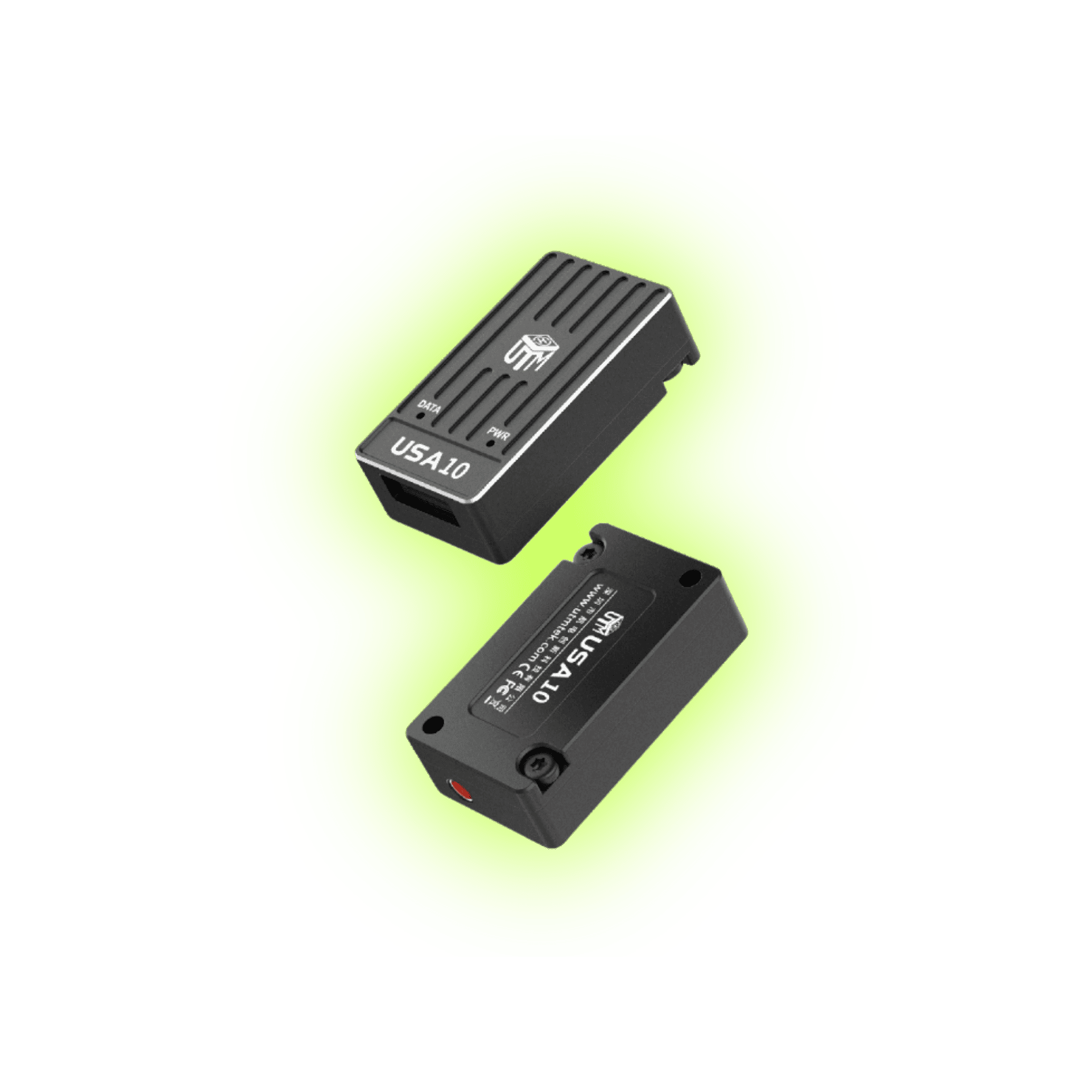

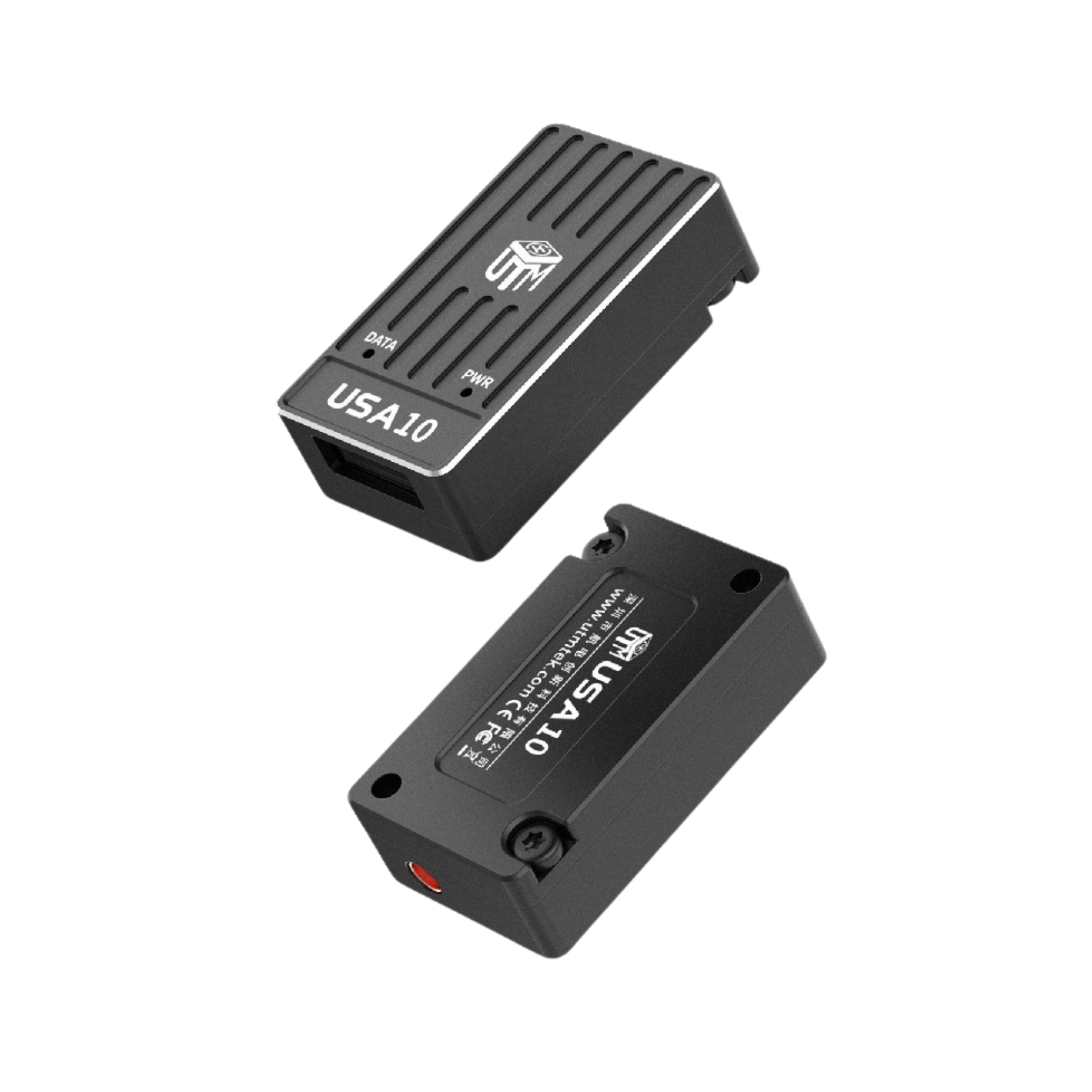

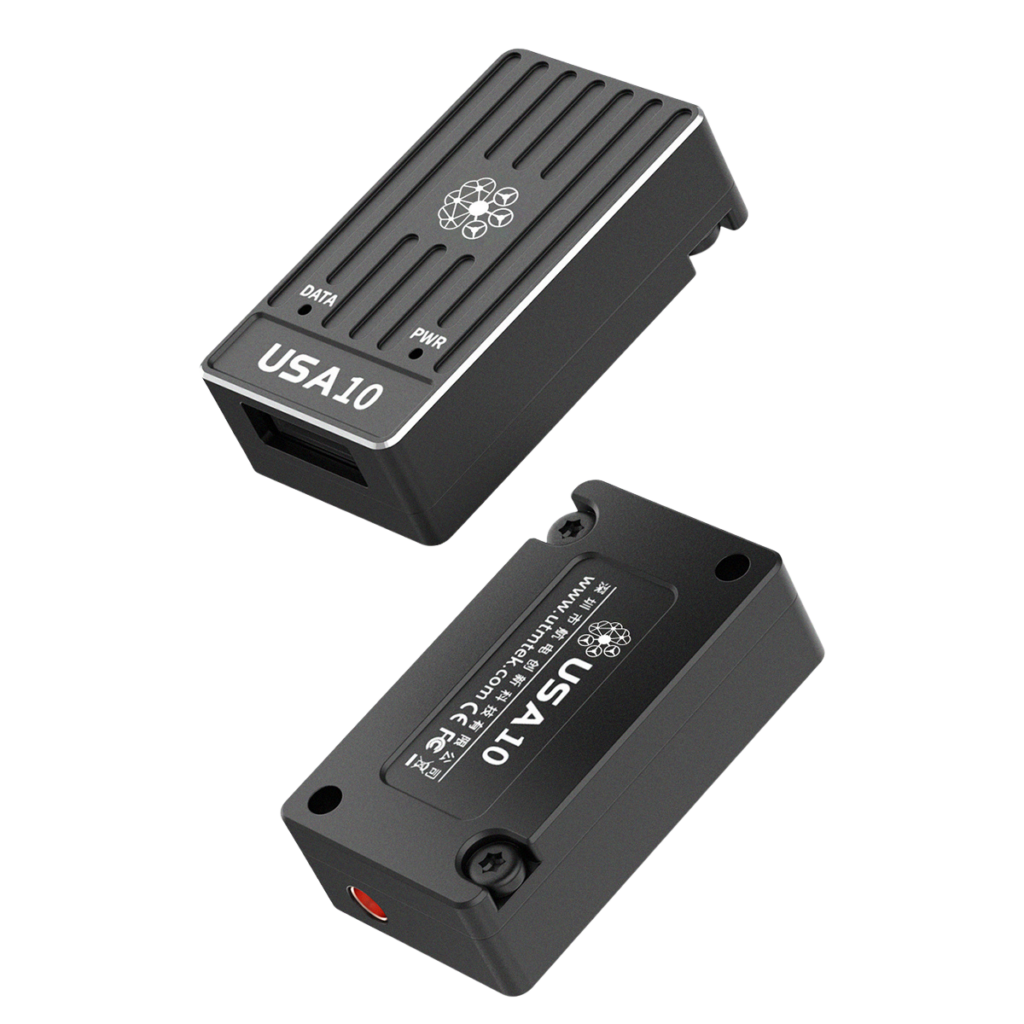

USA10 ADS-B Receiver Module
ADS-B receiver module enables real-time detection of nearby aircraft by receiving broadcast flight data, enhancing UAV airspace awareness, collision avoidance, and flight safety in complex environments.
5V, 55mA; 1090MHz; up to 250km; UART; 9.2g; -20~60°C.
- Real-time aircraft detection and tracking
- Enhances collision avoidance and airspace awareness
- Long-range reception up to 250 km
- High sensitivity for reliable signal acquisition
- Compact, lightweight design for UAV integration
UTMTEK Innovation Technology Co., Ltd.

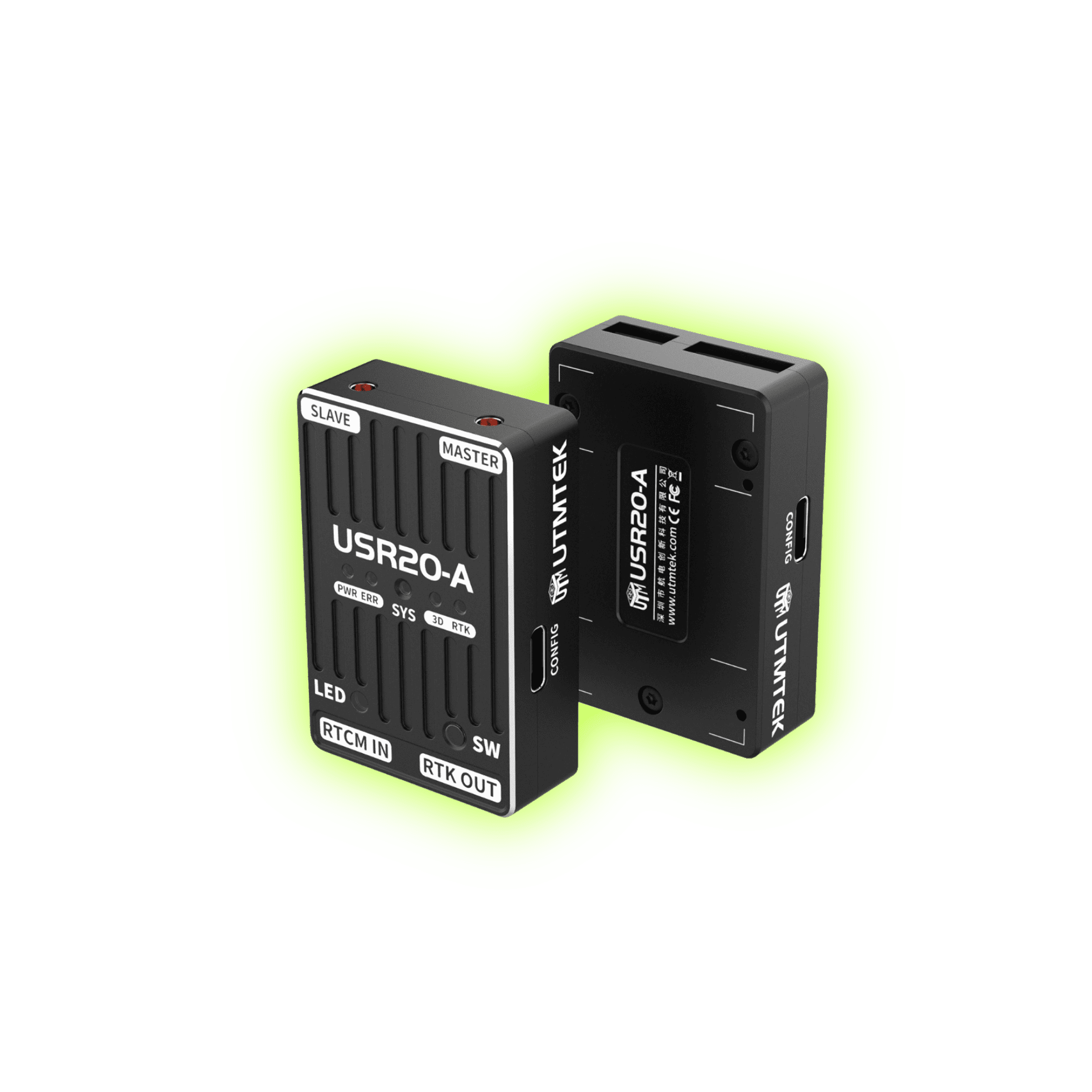

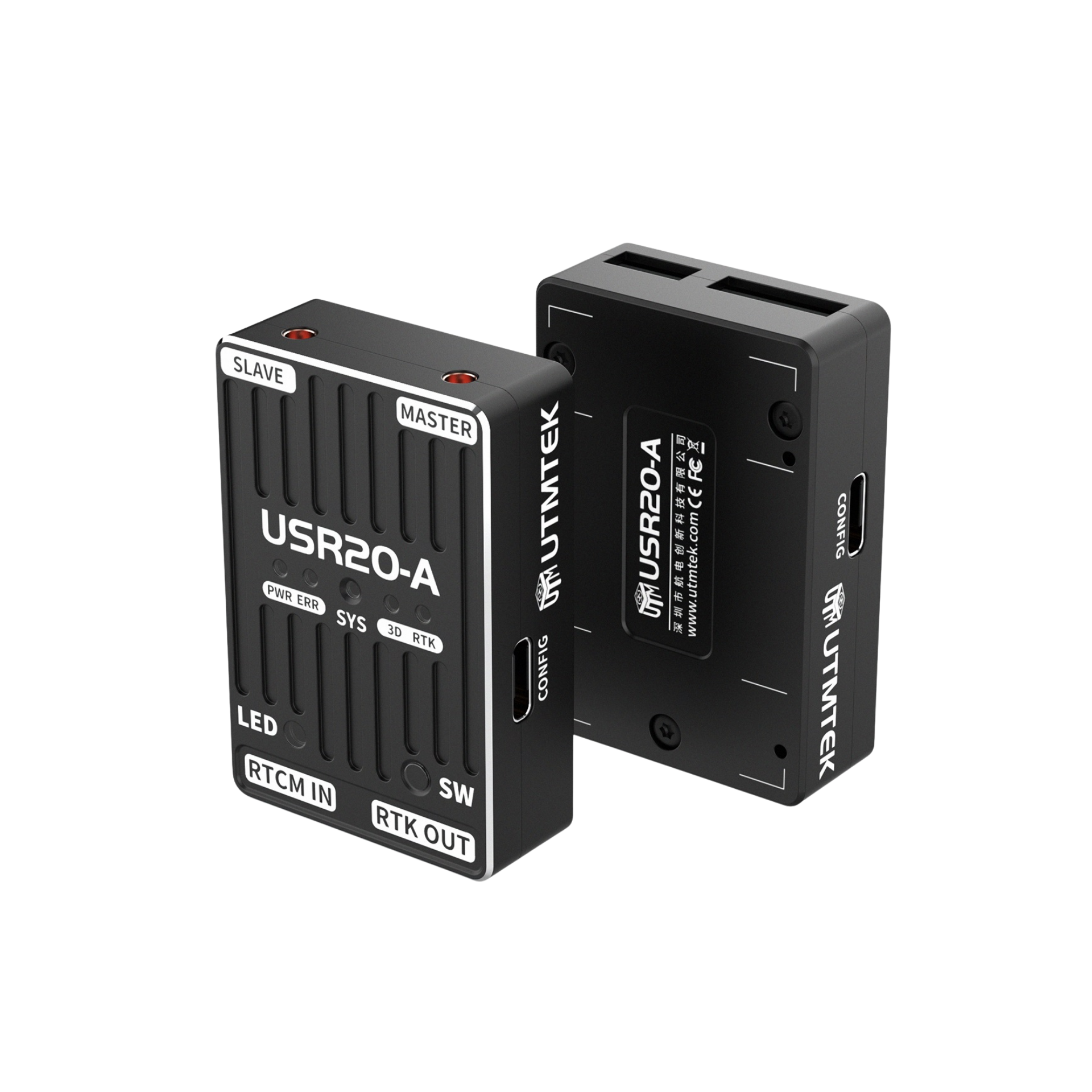

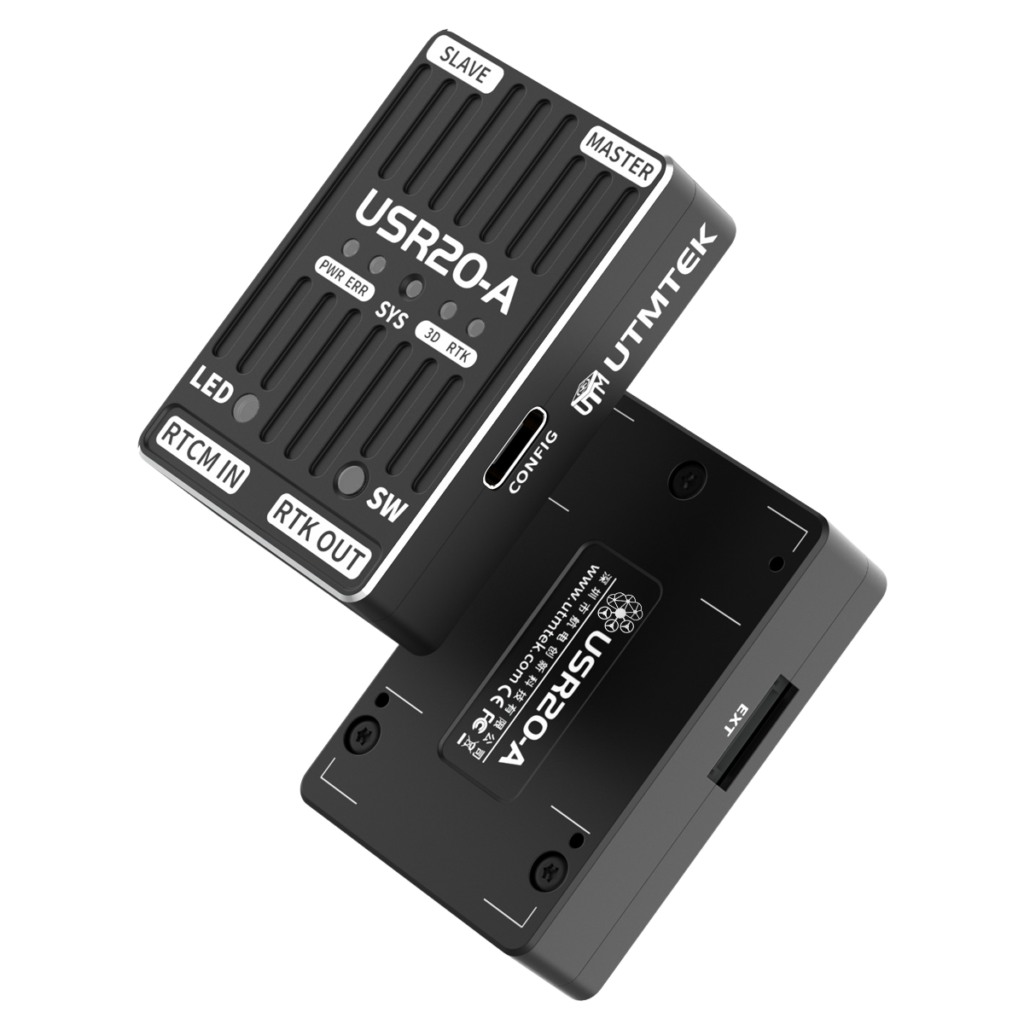

USR20 RTK Sky-side Unit
USR20-A is a high-precision airborne RTK positioning and heading module with dual antennas, delivering centimeter-level positioning and real-time orientation without magnetic interference for reliable UAV navigation.
12V, 350mA; multi-GNSS; 20Hz update; 30g; -20~60°C.
- Centimeter-level RTK positioning accuracy
- Dual-antenna heading without magnetic interference
- Multi-GNSS support for robust signal coverage
- High-rate data output for precise flight control
- Compact, integrated design for UAV applications
UTMTEK Innovation Technology Co., Ltd.

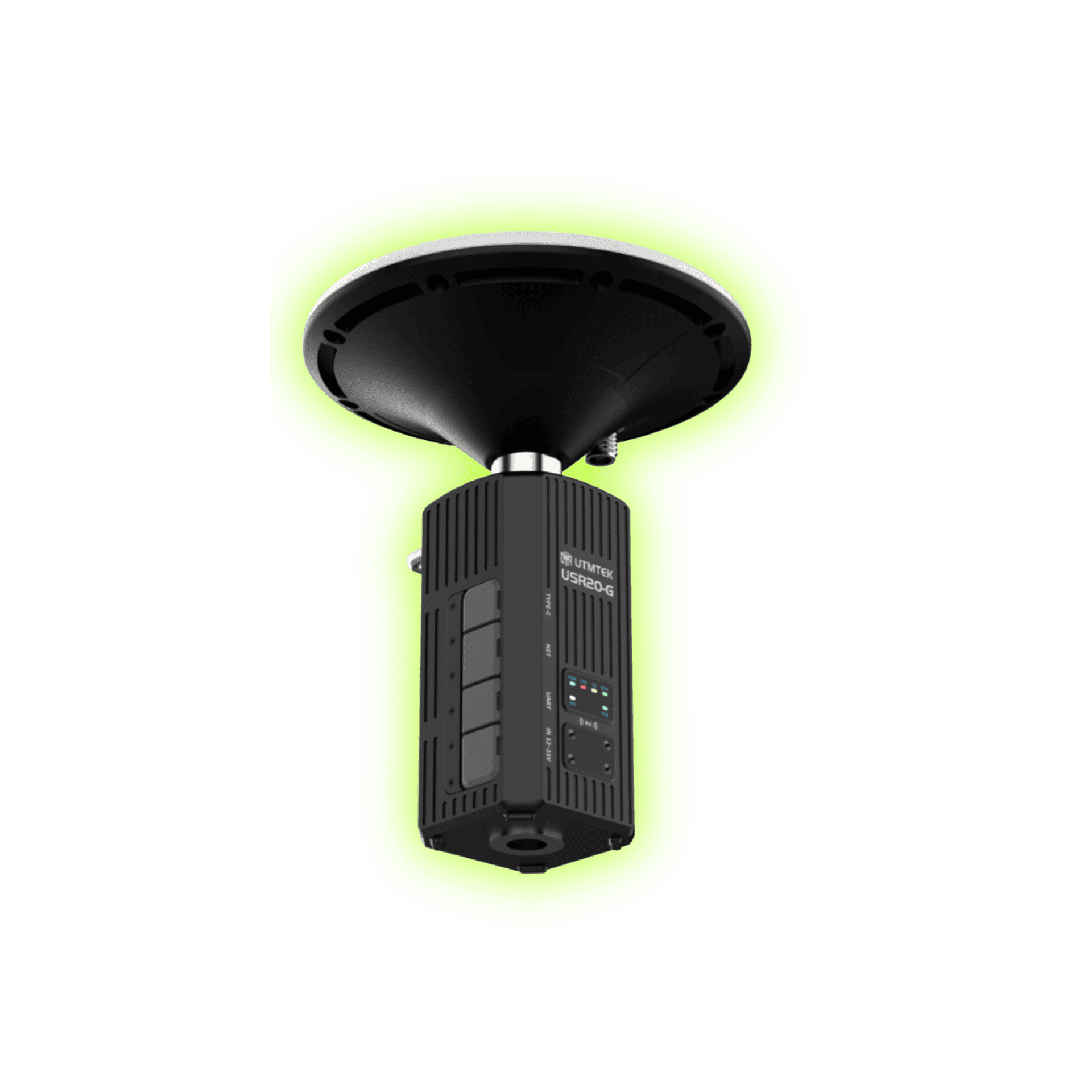

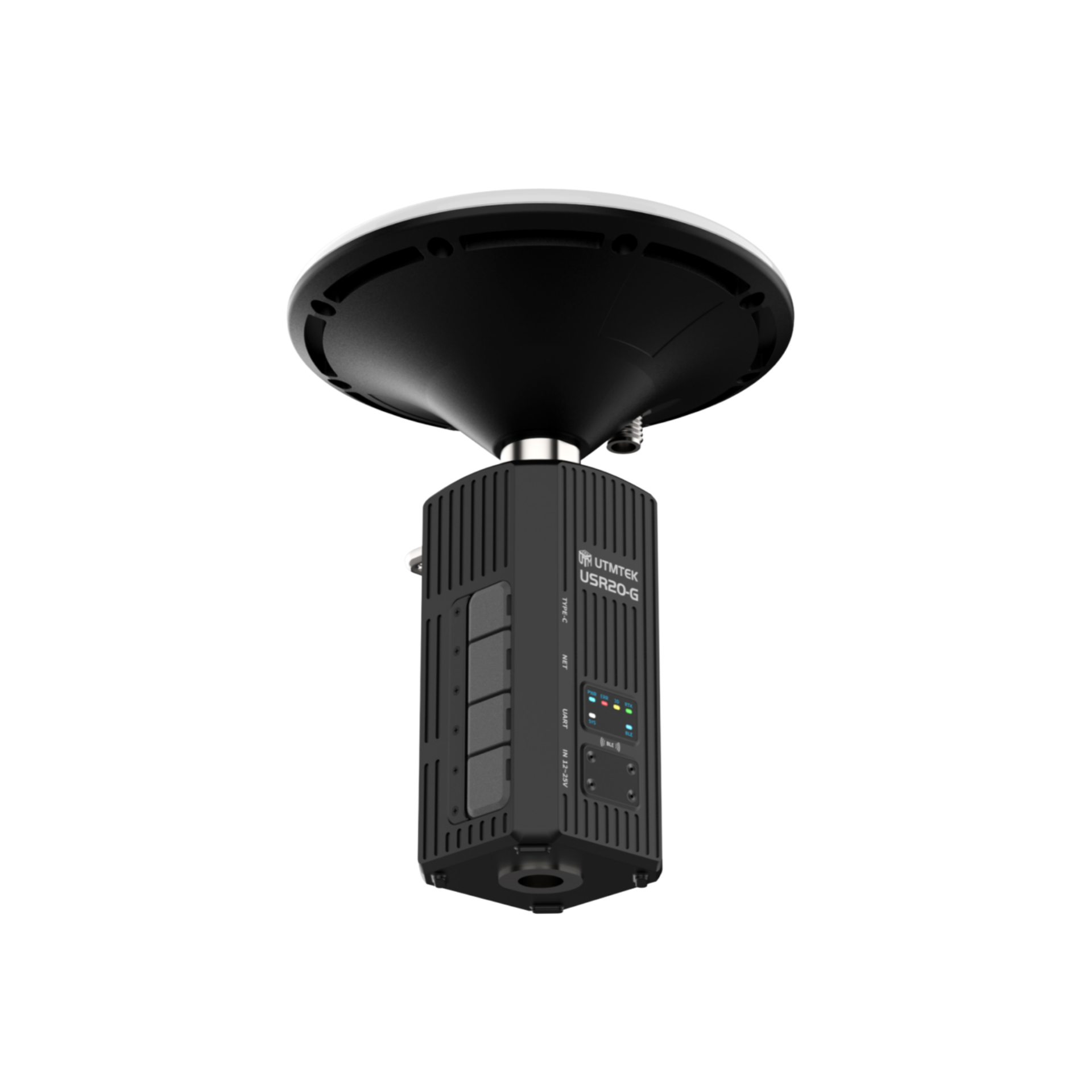

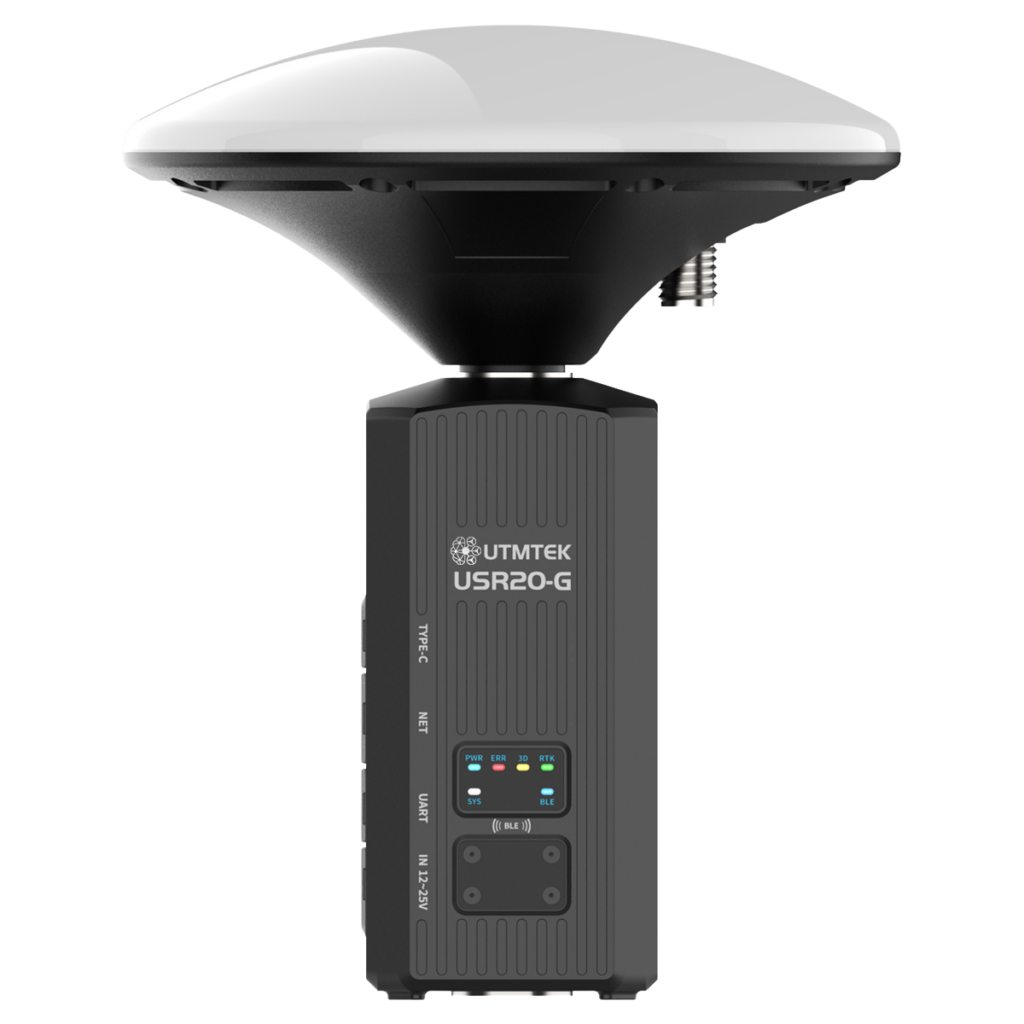

USR20 RTK Ground Unit
RTK base station provides high-precision GNSS reference by transmitting differential corrections, improving UAV positioning from meter-level to centimeter-level for surveying, inspection, and autonomous operations.
12–25V, 350mA; multi-GNSS; 20Hz; 650g; -20~60°C.
- Centimeter-level positioning via RTK correction
- Multi-GNSS support for high accuracy and stability
- Real-time differential data transmission
- Fast initialization and reliable performance
- Integrated IMU for enhanced positioning stability
UTMTEK Innovation Technology Co., Ltd.

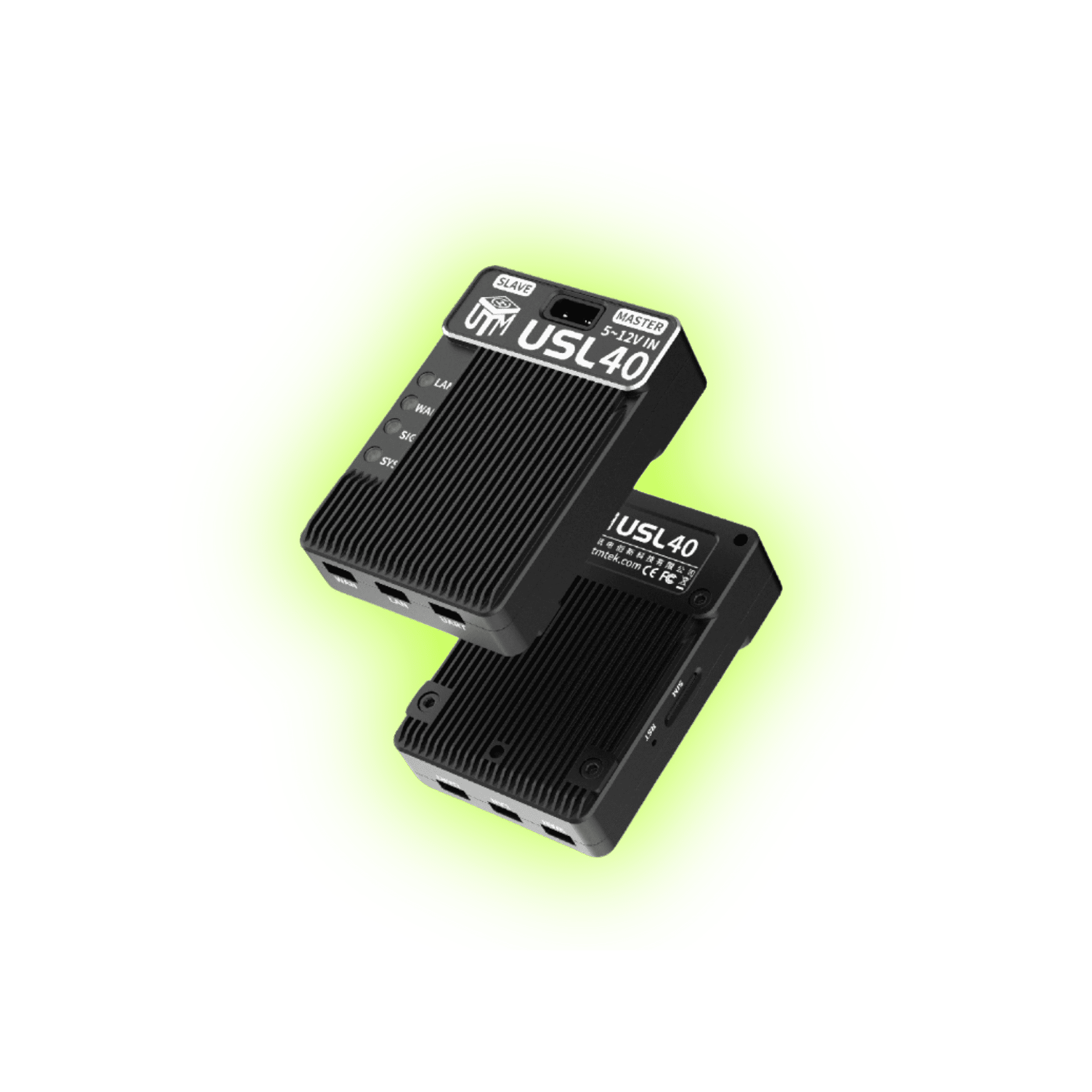

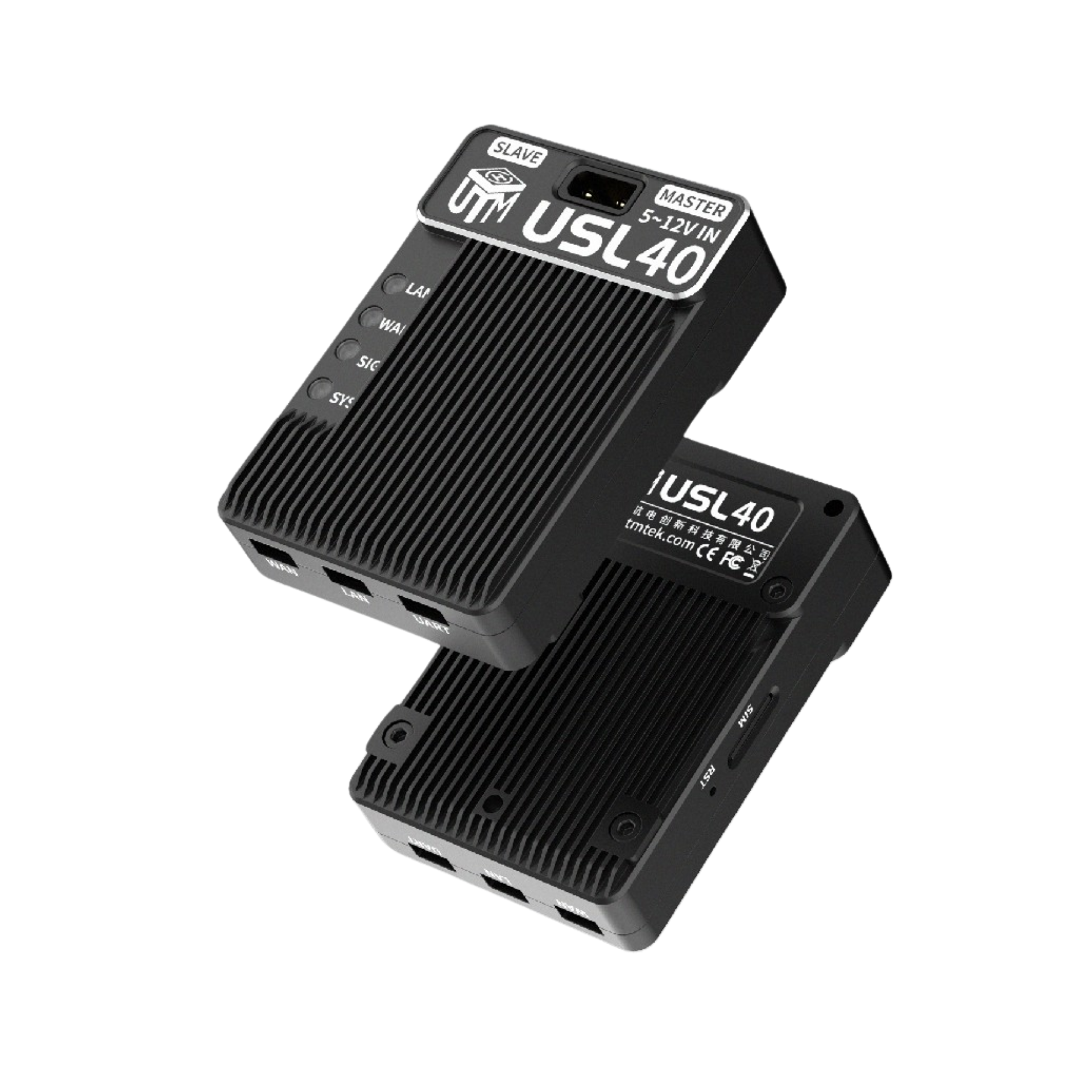

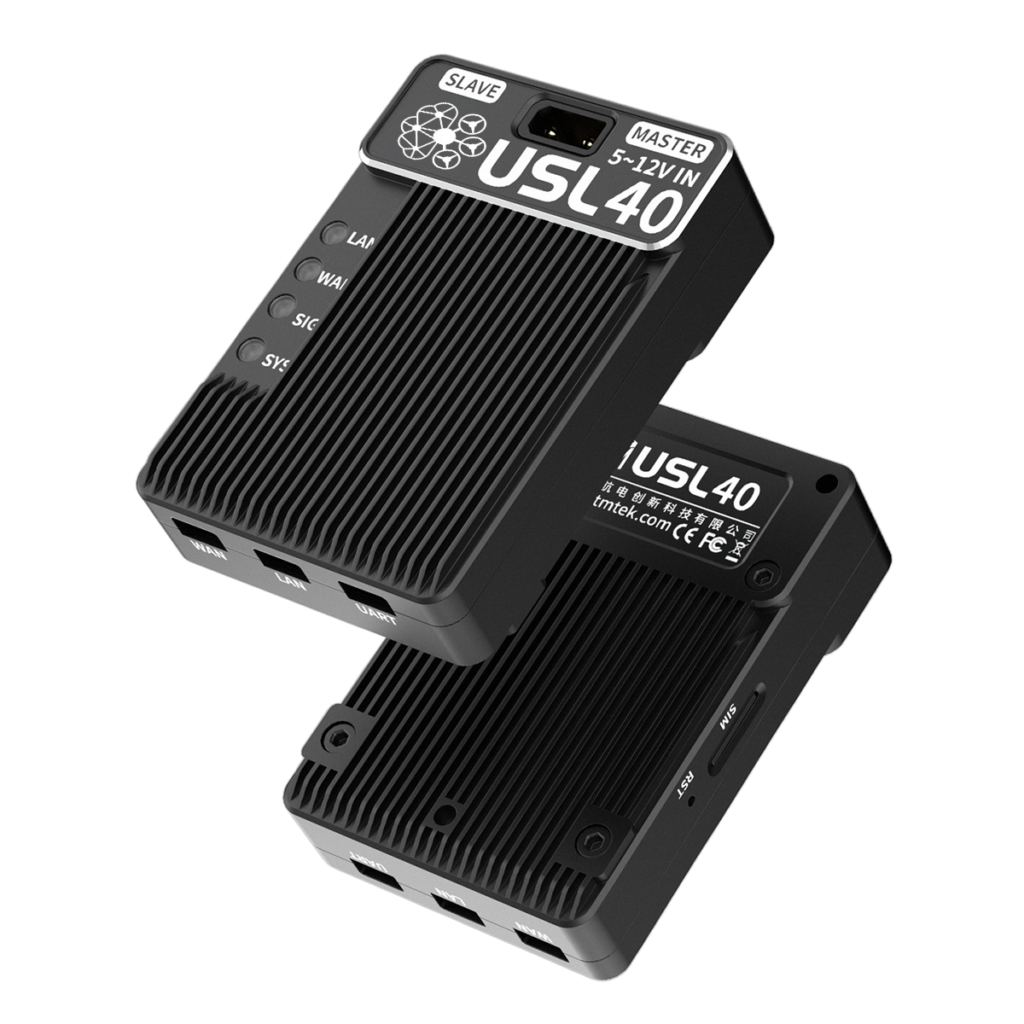

USL40 4G Communication Link
4G LTE module enables beyond-line-of-sight UAV communication, supporting HD data transmission, control links, and network RTK for reliable operation in complex environments.
12V, 1.5W; 300Kbps; 47g; -20~60°C.
- Enables BLOS control via 4G LTE network
- Supports data transmission and link redundancy
- Compatible with network RTK positioning
- Stable communication in complex environments
- Compact, low-power onboard module
UTMTEK Innovation Technology Co., Ltd.

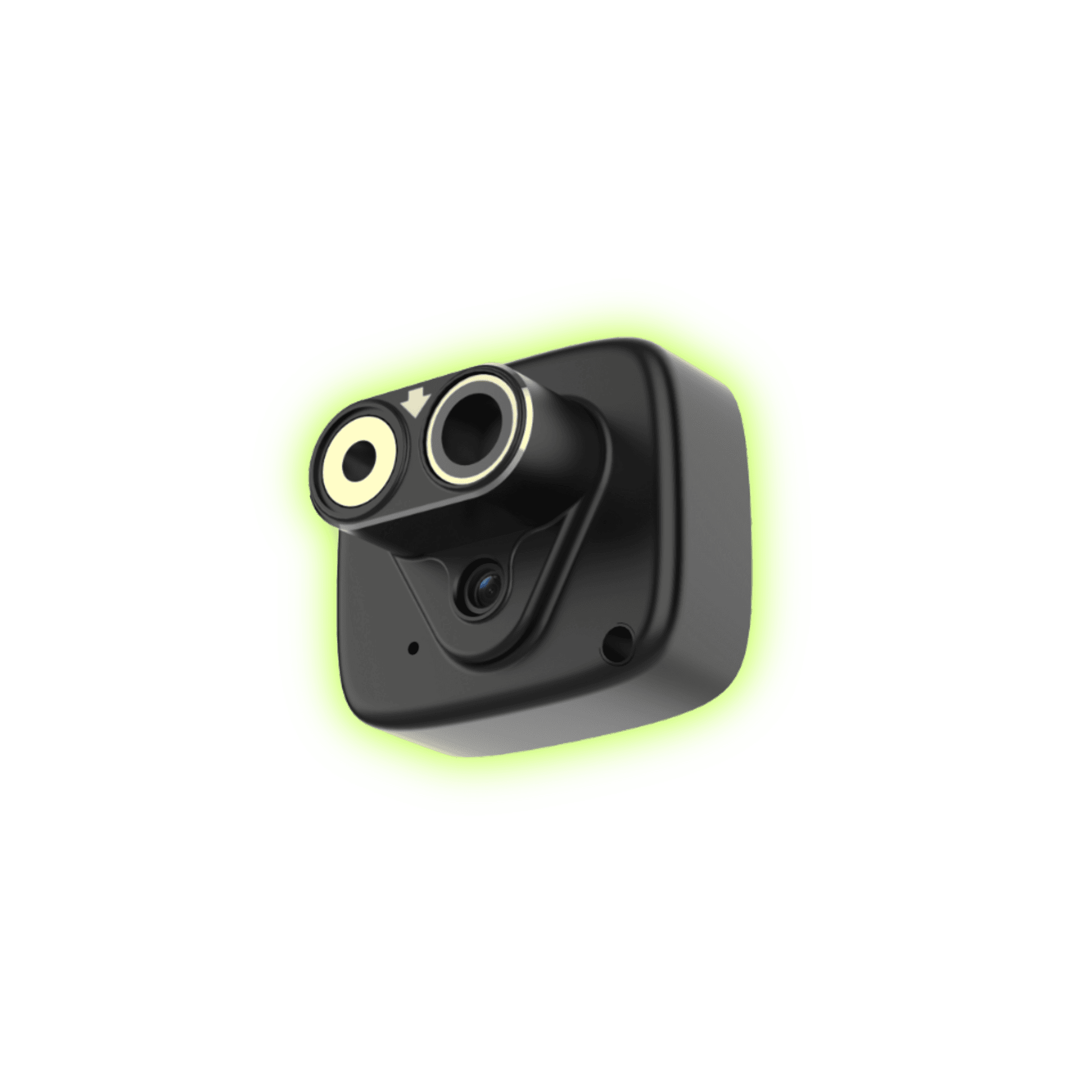

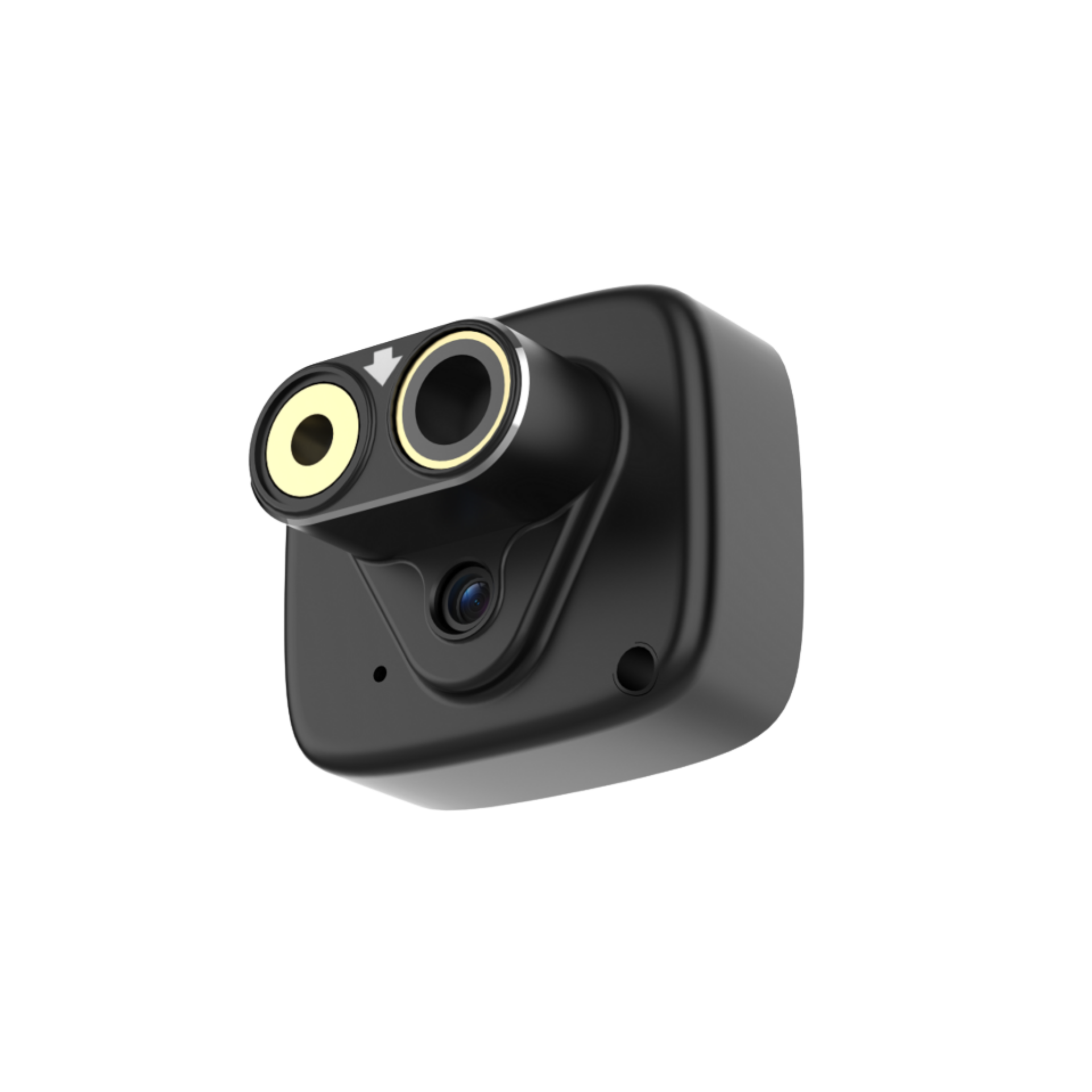

USF10 Optical Flow Positioning Module
Optical flow positioning module enables GPS-denied navigation by tracking ground texture displacement, providing stable hovering and precise low-altitude positioning for UAVs.
5V; UART; 100Hz; 0.01–8m range; 500mW; -10~60°C.
- Enables stable hover without GPS (indoor/corridor)
- Real-time optical flow velocity and position sensing
- High refresh rate (100Hz) for smooth control
- Accurate short-range distance measurement
- Strong ambient light resistance for reliable operation
UTMTEK Innovation Technology Co., Ltd.

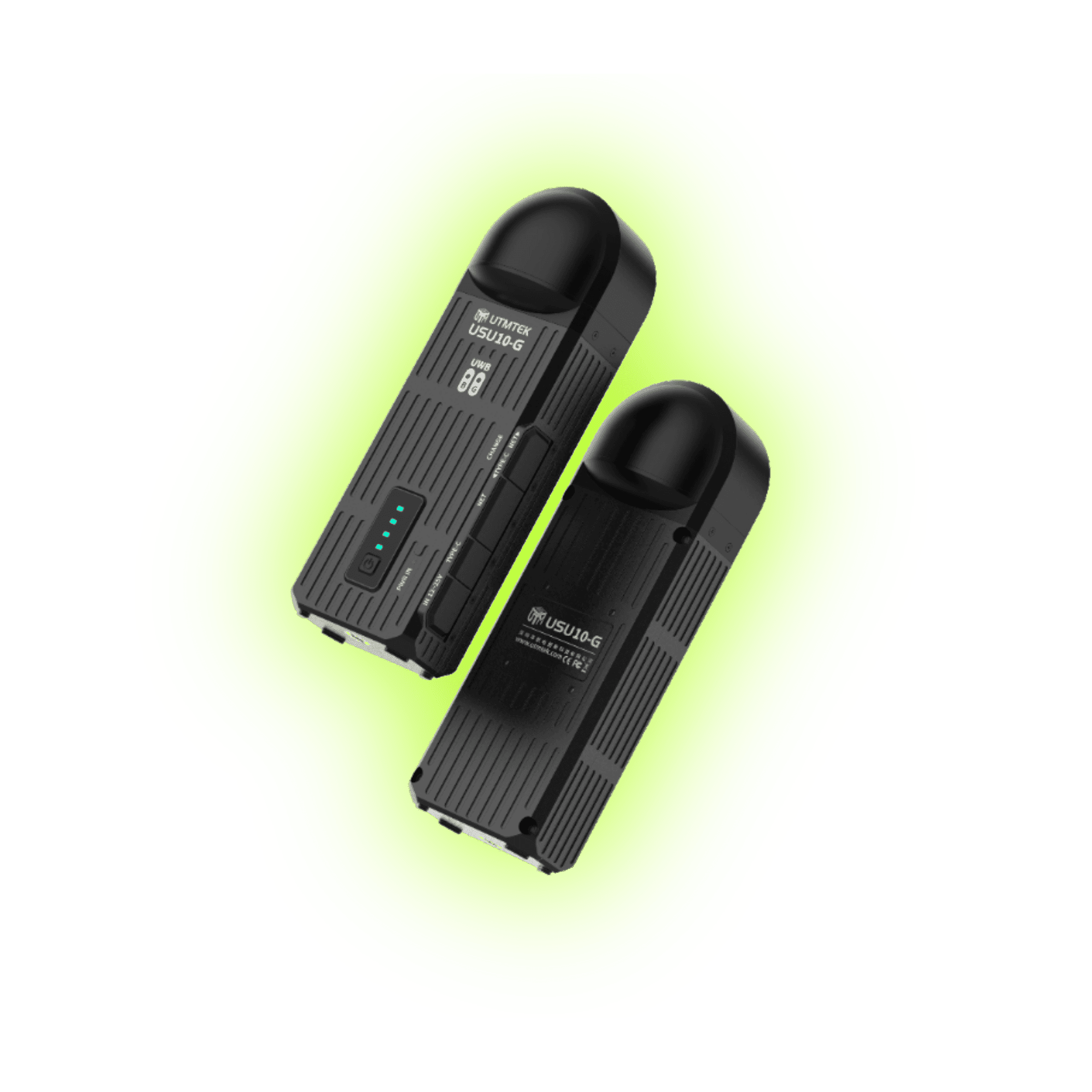

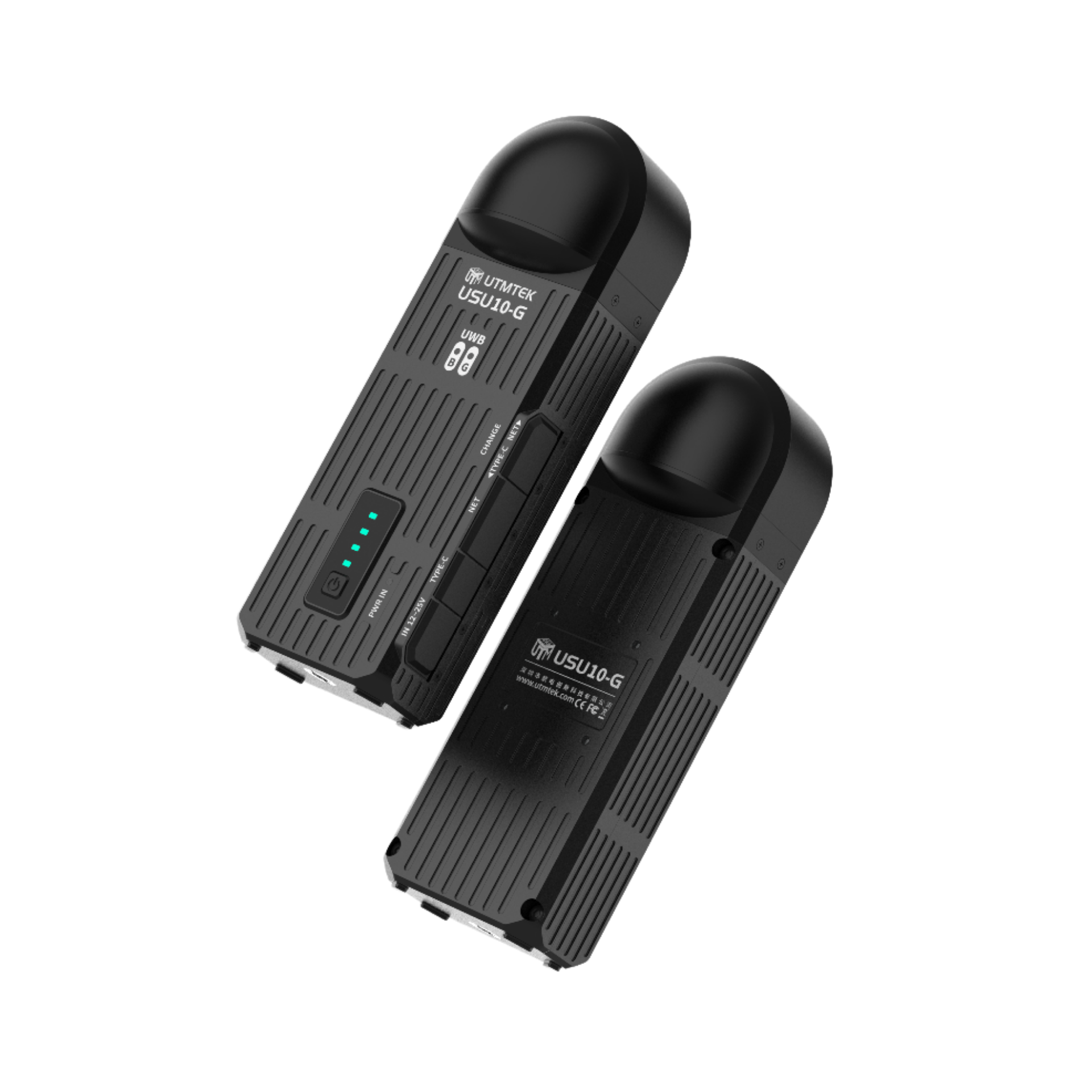

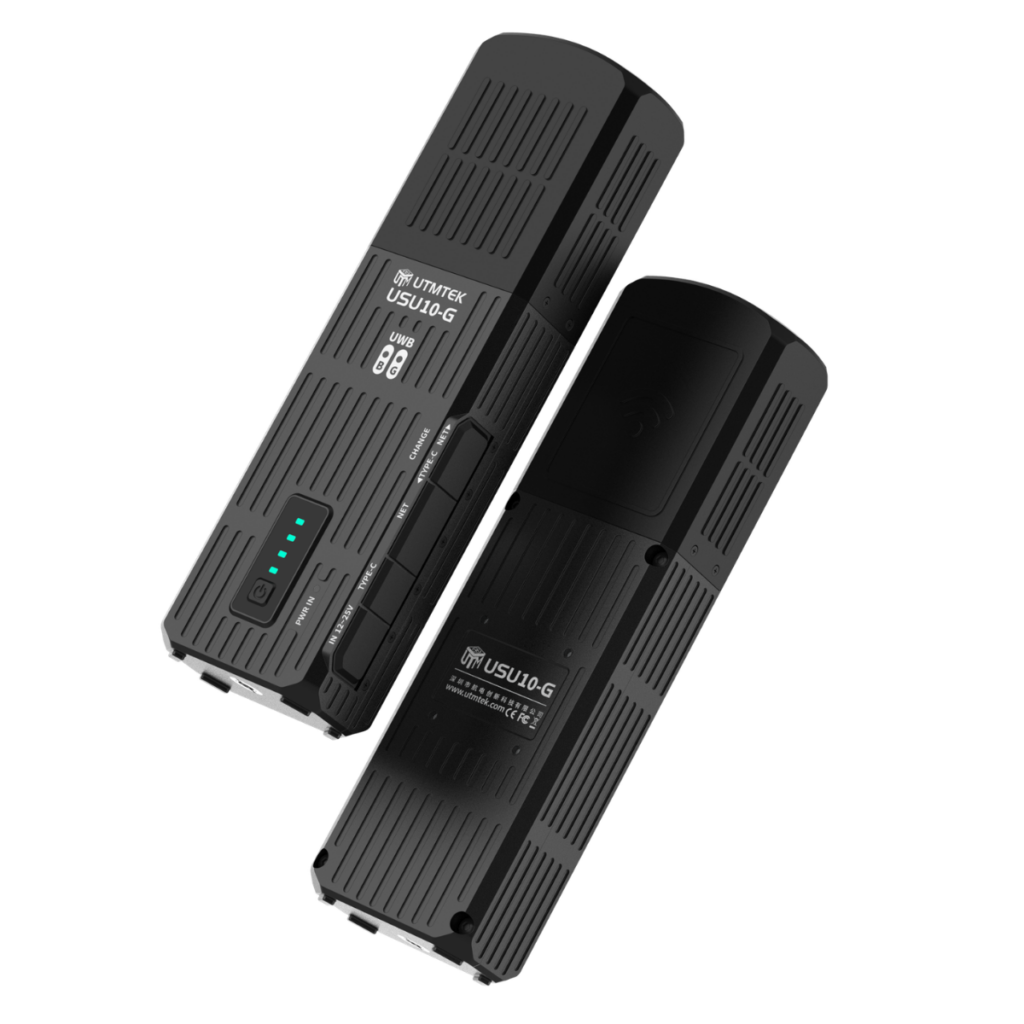

USU10 UWB Positioning
USU10 UWB positioning system consists of airborne and ground units that form a real-time ultra-wideband network for GPS-free centimeter-level positioning, enabling precise navigation, landing, and collision avoidance in complex environments.
Ground Base Station: 12–24V; Sky Side: 5V UART; -20~60°C.
- Centimeter-level positioning and ranging via UWB
- Real-time two-way air–ground communication network
- Enables GPS-denied navigation in indoor/outdoor scenarios
- Supports precise landing, hovering, and formation flight
- Strong anti-interference with low-latency response
UTMTEK Innovation Technology Co., Ltd.

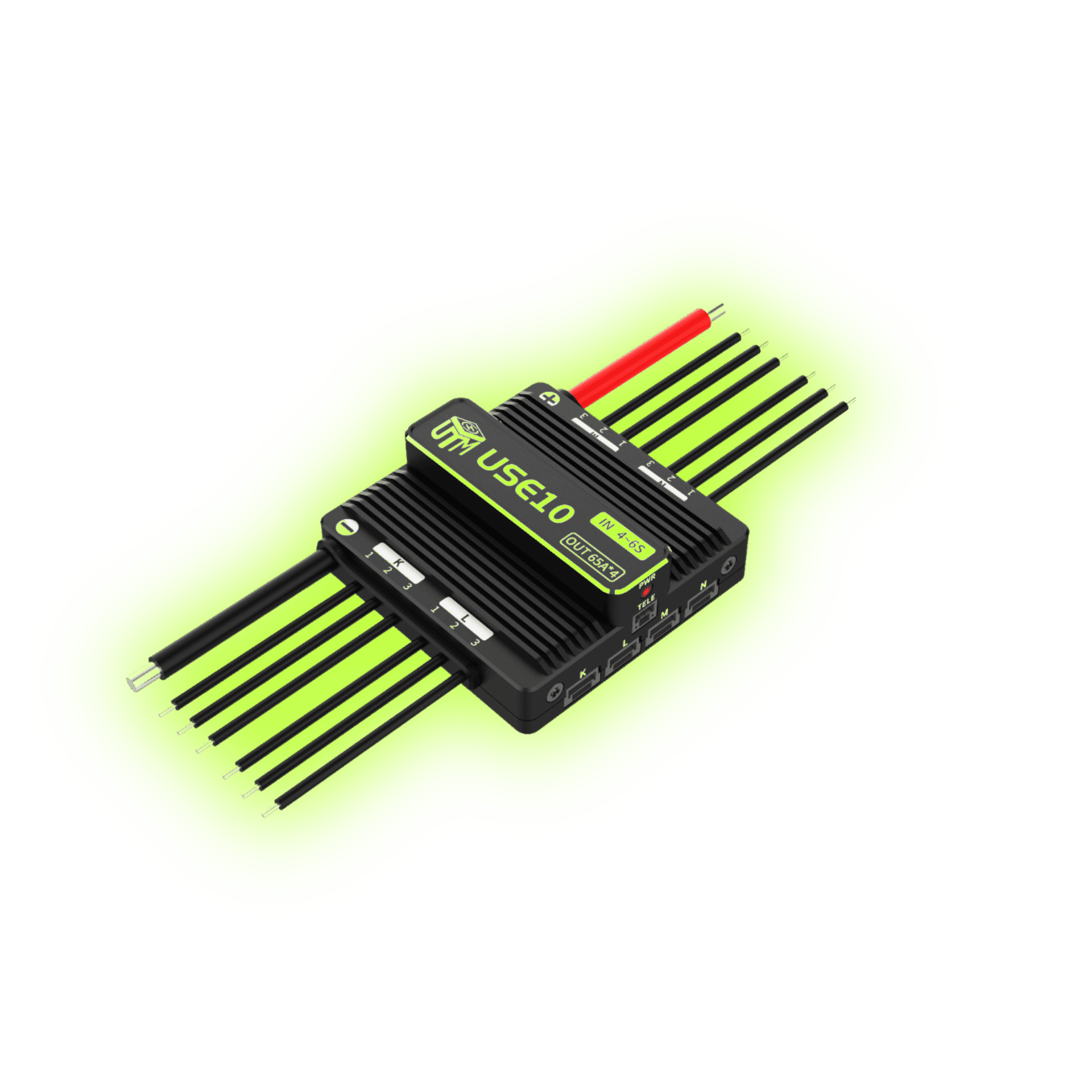

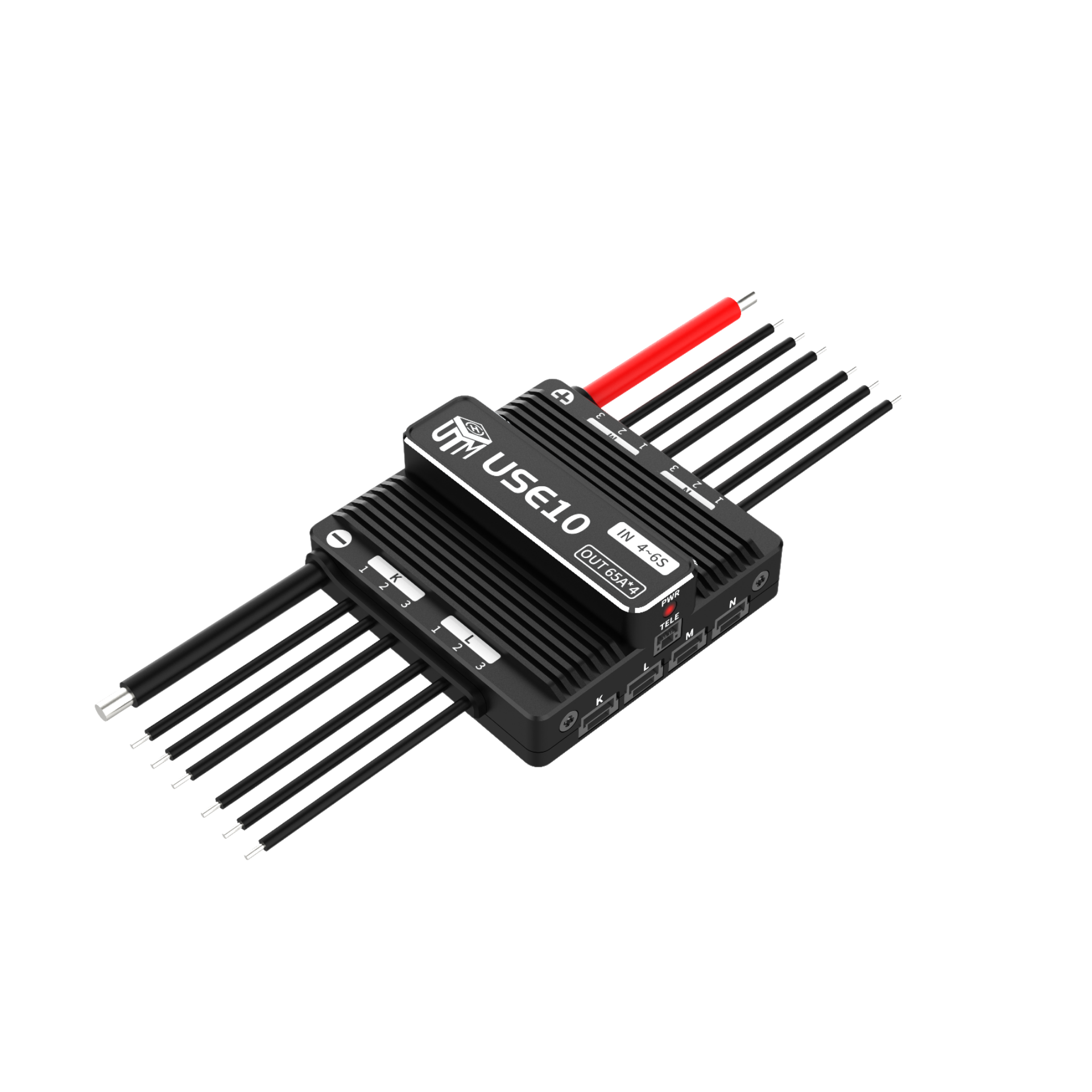

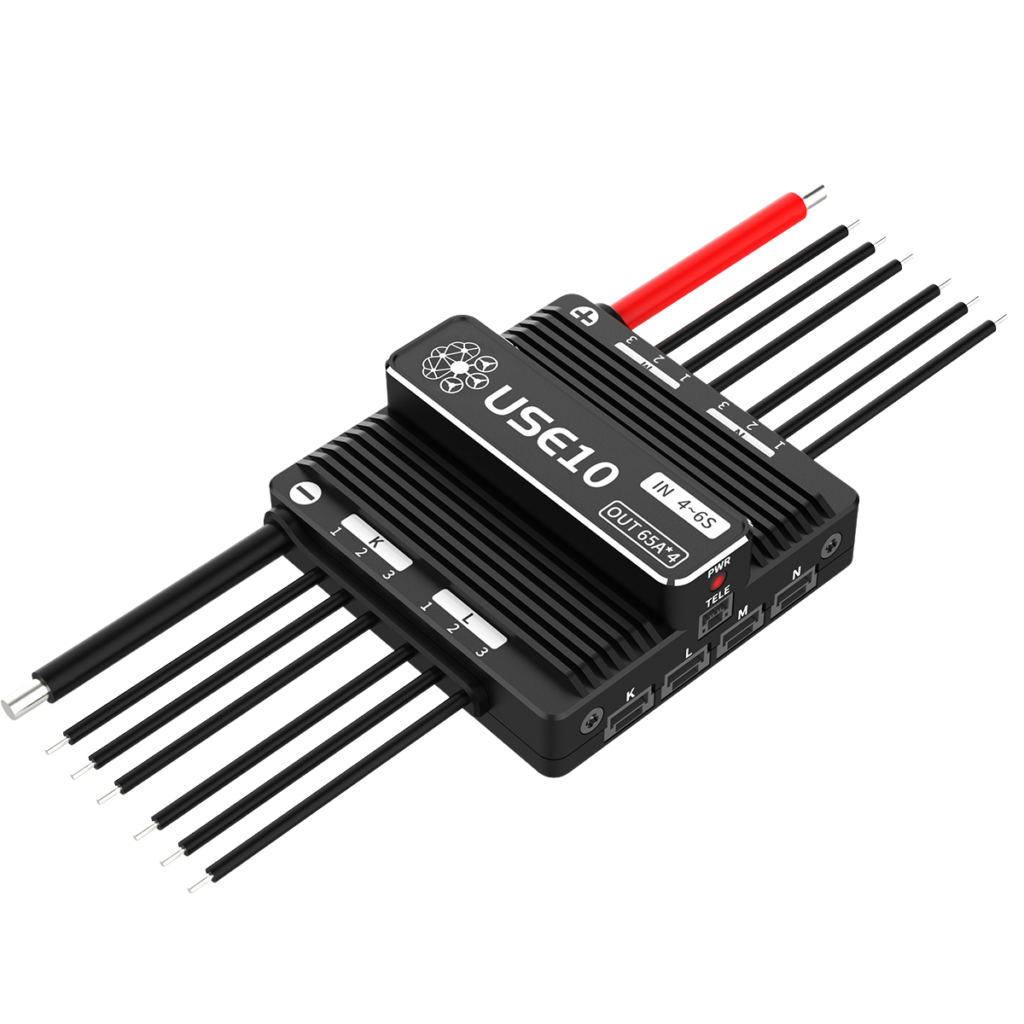

USE10 4-in-1 ESC
USE10 is a 4-in-1 brushless ESC that integrates four motor channels, enabling precise speed and power control for multi-rotor UAVs with multiple built-in protection functions for stable and reliable operation.
4–6S LiPo; 4 channels; 65A continuous / 80A peak per channel; 87g; -20~60°C.
- Integrated 4-channel motor control for simplified wiring
- Precise PWM-based speed regulation for stable flight
- Overcurrent, overheat, and stall protection
- High-current output for multi-rotor performance
- Compact integrated ESC design reducing system interference

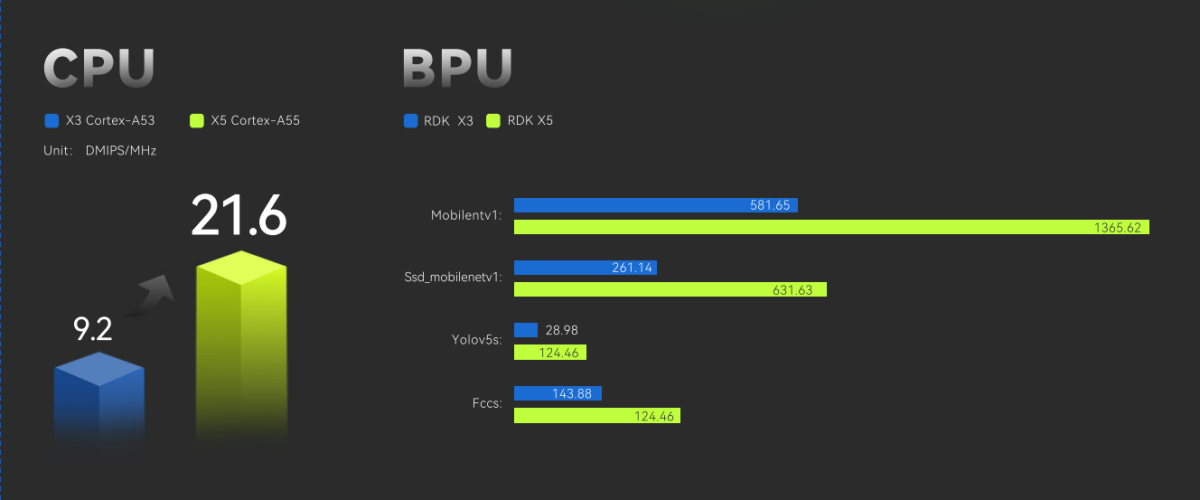

10 TOPS
Onboard AI Computing Power
Multiple Interfaces
Mainstream Sensor Compatibility 32+
DIVIDED TWO CHIPS
Flightcontroller+Al Ubuntu+ROS2 PX4/ArduPilot
SDK
Full-Stack Open Supports Secondary Development
Multirotor
Lorem ipsum dolor sit amet, consec tetur adipiscing elit.
Air-Ground Collaborative Perception

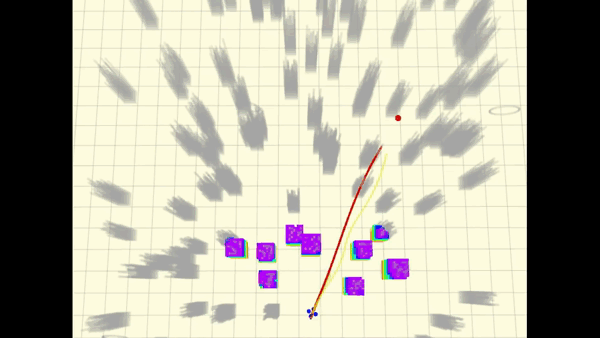

Intelligent Path Planning
In complex environments (e.g., forests with tree cover or indoor GPS-denied areas), the USX51 uses “vision + AI fusion” sensing to accurately plan optimal paths.
Object Detection
This enables collaborative obstacle avoidance and dynamic path adjustment, with autonomous navigation precision reaching the centimeter level.
Application Scenarios
Law EnforcementIAgriculturalProtectionHuman&VehicleRecognitionDisaster Relief|Environmental Monitoring
Wildfire Rescue – Provincial Emergency Department

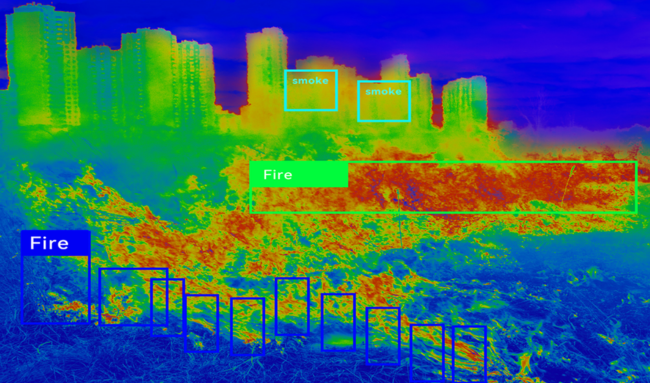

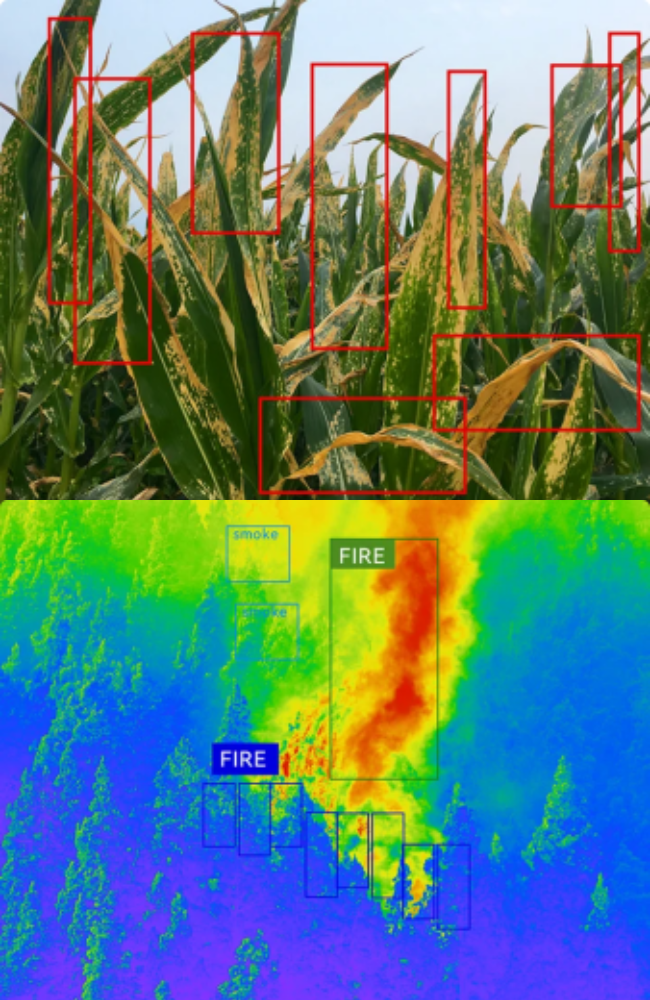

• Fire & Smoke Detection: Usesimage segmentation algorithms to outline fire boundaries in realtime,calculatesmokediffusionspeed,andgeneratedynamic heatmaps.
• Vessel Detection & Tracking: UsesYOLOv8+DeepSORTtoaccuratelyidentify threevessels approaching the fire zone.Marking Locations and Navigation Tracks.
AI & Edge-Computing Flight Control Systems
What can the USX51 do?
Edge Computing | Flight Control | Autonomous | Open-Source | Smart Drones | Innovation

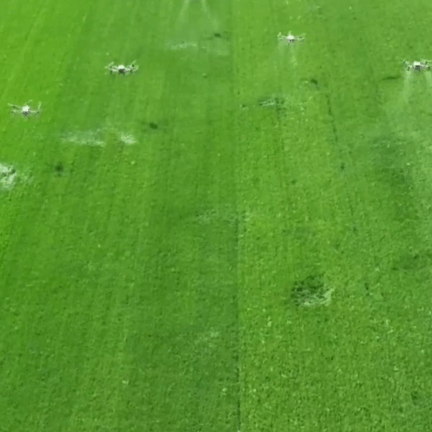

Precision Agriculture
Driven by USX51
Mine Surveying
Driven by USX51

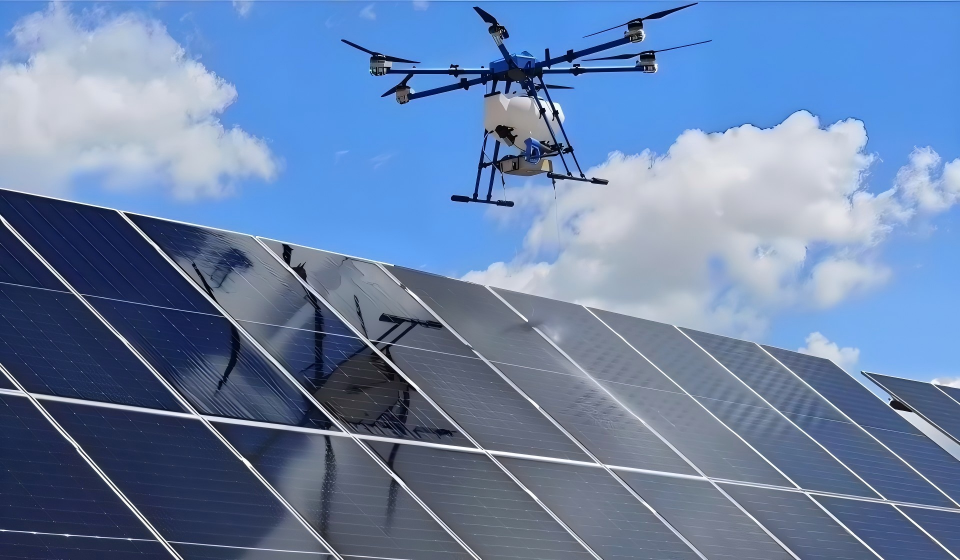

Photovoltaic Panel Cleaning
Driven by USX51
